(55.414.01[02]) - MOTOR SENSORS (504226073 - 504270473)

Запчасти Case F2CFE614A A013 (55.414.01[02]) - MOTOR SENSORS (504226073 - 504270473) (06) - ELECTRICAL SYSTEMS

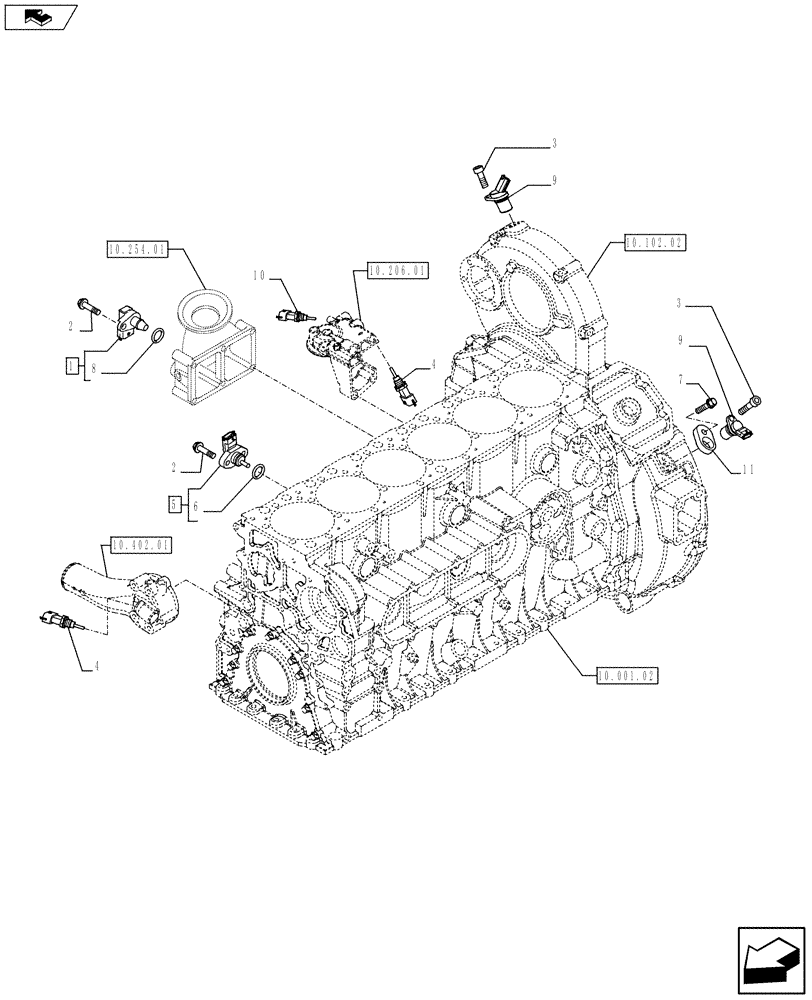

Схема запчастей Case F2CFE614A A013 - (55.414.01[02]) - MOTOR SENSORS (504226073 - 504270473) (06) - ELECTRICAL SYSTEMS
6
5
11
9
home
10.402.01
10.001.02
10.206.01
2
10
4
9
8
10.254.01
4
1
10.102.02
3
7
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504372225

SENSOR,Temperature / Pressure

Air Temp and Pressure Sensor

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

3шт.

3

16689024

SCREW,M16 x 12mm

M6 x 12

1шт.

4

82017881

SENSOR

Water Temp and Pressure Sensor

2шт.

5

504358206

Oil Pressure/Temp Sensor

SWITCH,Pressure

1шт.

6

4895477

O-RING,2.62mm Thk x 13.94mm ID

D = 13,94 mm

1шт.

7

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

8

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.

9

504096645

TRANSMITTER

Speed Sensor

2шт.

10

500346074

SENDER UNIT

Fuel Pressure Transmitter

1шт.

11

504163664

SPACER

1шт.
