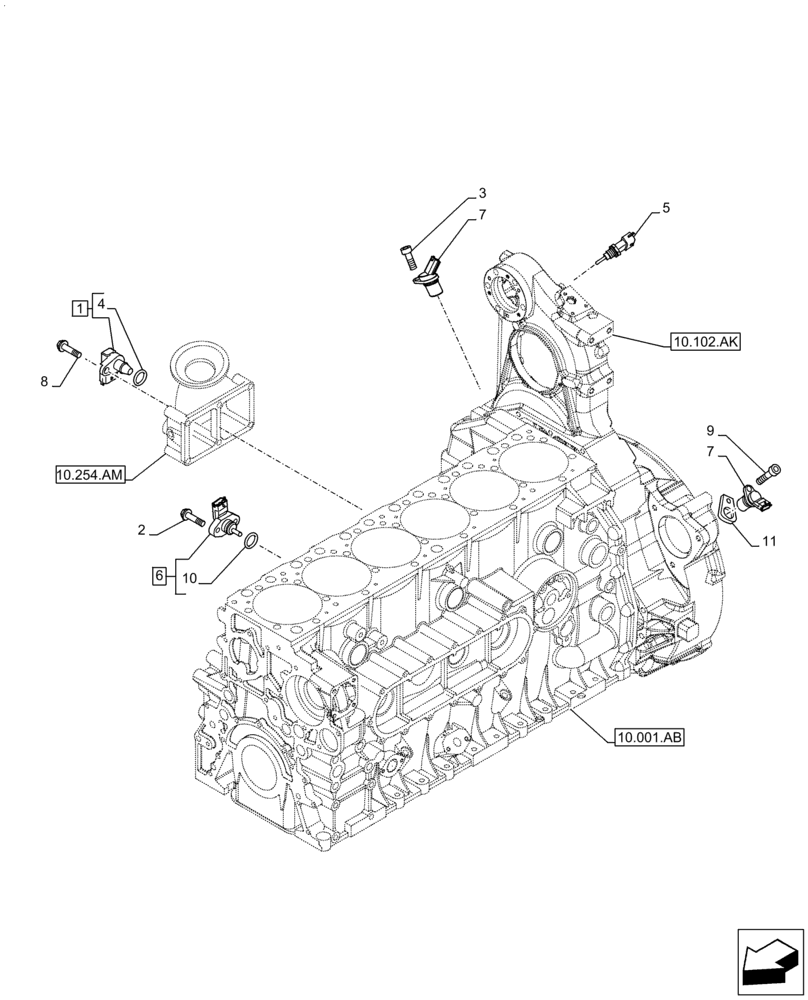

Запчасти Case F2CFE614A A010 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

1

504073323

SENSOR

ASSY; Incl 4

1шт.

2

16585870

SCREW,Hex, M6 x 20mm

M6 x 20 mm

2шт.

3

16689024

SCREW,M16 x 12mm

M6 x 12 mm

1шт.

4

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

D=16 x 24 mm Sp=2,62 mm

1шт.

5

82017881

SENSOR

Press. & Temp.

1шт.

6

504358206

SWITCH,Pressure

1шт.

7

504096645

TRANSMITTER

2шт.

8

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18 mm

3шт.

9

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

M6 x 1 x 25 mm

1шт.

10

4895477

O-RING,2.62mm Thk x 13.94mm ID

D=13,94 Sp=2,62 mm

1шт.

11

504163664

SPACER

1шт.
