(10.206.01) - FUEL FILTER & RELATED PARTS (5801507198)

Запчасти Case F2CFA614C E020 (10.206.01) - FUEL FILTER & RELATED PARTS (5801507198) (10) - ENGINE

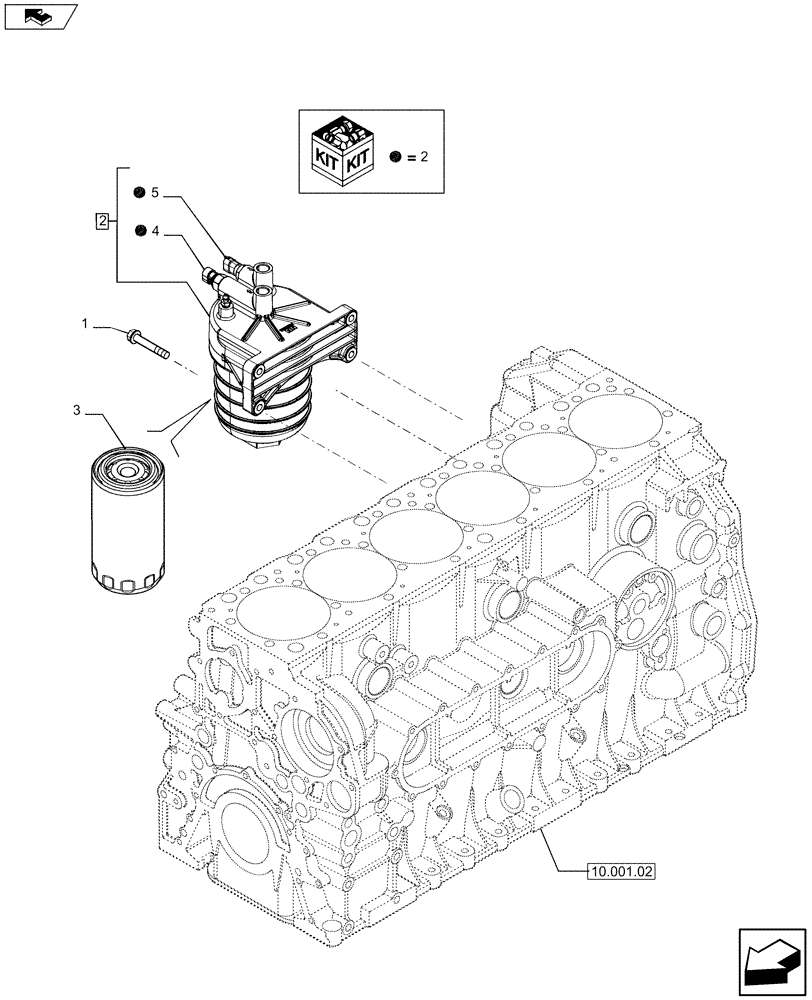

Схема запчастей Case F2CFA614C E020 - (10.206.01) - FUEL FILTER & RELATED PARTS (5801507198) (10) - ENGINE
2
2
1
4
3
2
2
10.001.02
home
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

M8 x 30

4шт.

2

5801465187

FILTER ASSY

1шт.

3

5801439820

FUEL FILTER

Cartridge

1шт.

4

500346074

SENDER UNIT

1шт.

5

82017881

SENSOR

Water Pressure and Temperature

1шт.
