(55.414.01) - MOTOR SENSORS (504135967 - 504270473) (Jul 6 2011 5:47:00.5627 AM)

Запчасти Case F2CFA614B E020 (55.414.01) - MOTOR SENSORS (504135967 - 504270473) (Jul 6 2011 5:47:00.5627 AM) (55) - ELECTRICAL SYSTEMS

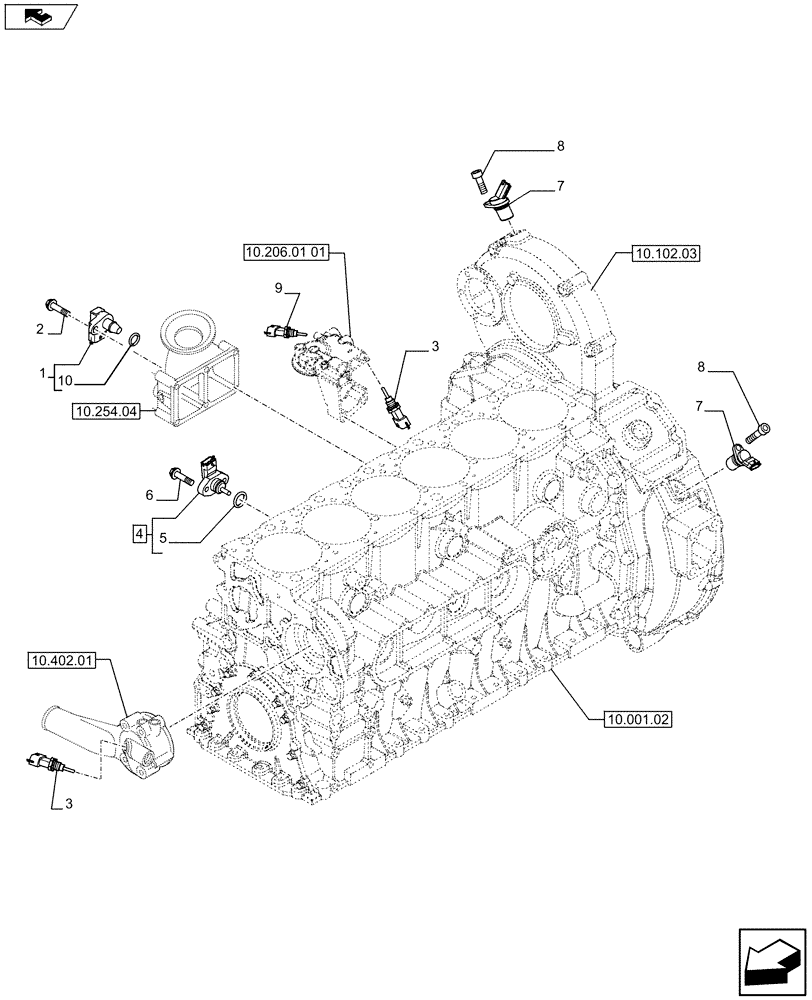

Схема запчастей Case F2CFA614B E020 - (55.414.01) - MOTOR SENSORS (504135967 - 504270473) (Jul 6 2011 5:47:00.5627 AM) (55) - ELECTRICAL SYSTEMS
5
10.206.01 01
4
home
10.254.04
8
2
7
10.102.03
10.001.02
8
6
1
10
9
7
10.402.01
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Air Temperature / Pressure, 4 wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

3

82017881

SENSOR

Coolant Temperature

2шт.

4

504358206

ASSY OIL PRESS. & TEMPER.

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

7

504096645

TRANSMITTER

Camshaft & Crankshaft, 2 wire

2шт.

8

16689024

SCREW,M16 x 12mm

M6 x 12

2шт.

9

500346074

SENDER UNIT

1шт.

10

42546555

O-RING

1шт.
