(10.304.01 03) - AUXILIARY OIL PUMP & RELATED PARTS (504375410)

Запчасти Case F2CFA614B E019 (10.304.01 03) - AUXILIARY OIL PUMP & RELATED PARTS (504375410) (10) - ENGINE

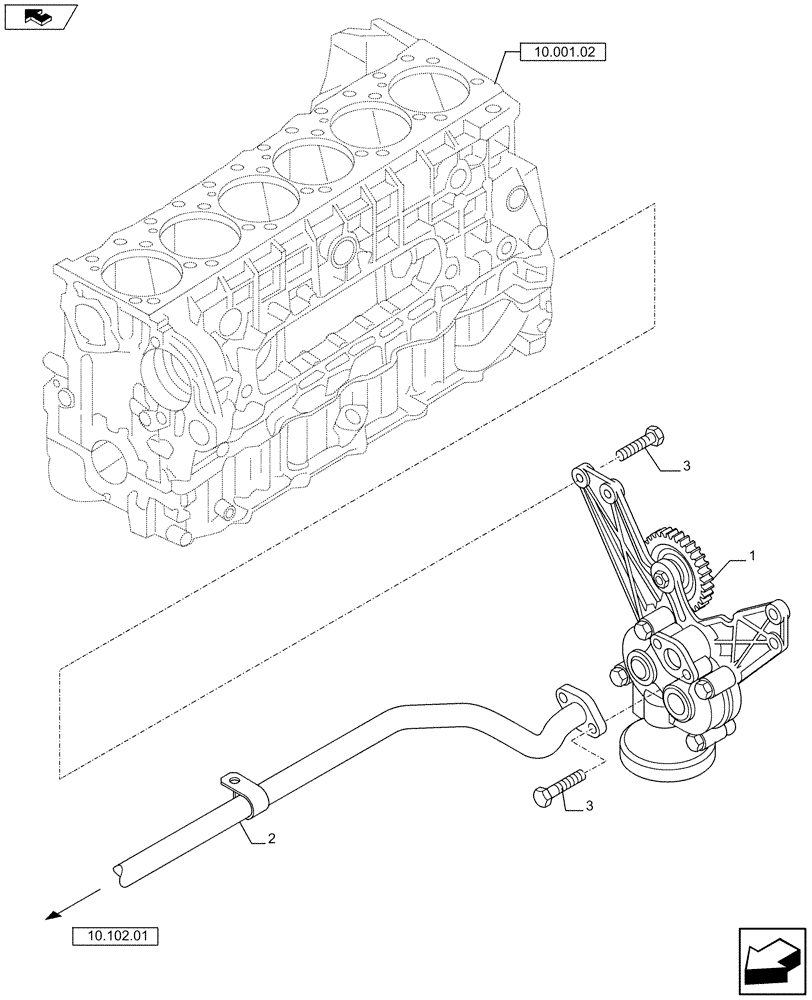

Схема запчастей Case F2CFA614B E019 - (10.304.01 03) - AUXILIARY OIL PUMP & RELATED PARTS (504375410) (10) - ENGINE
3
10.001.02
10.102.01
2
3
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504375411

ENGINE OIL PUMP

M8 x 1.25 x 60

1шт.

1

504375689

RIGID TUBE

M8 x 1.25 x 45

1шт.

2

16673735

BOLT,Hex, M8 x 1.25 x 25mm

ASSY

4шт.
