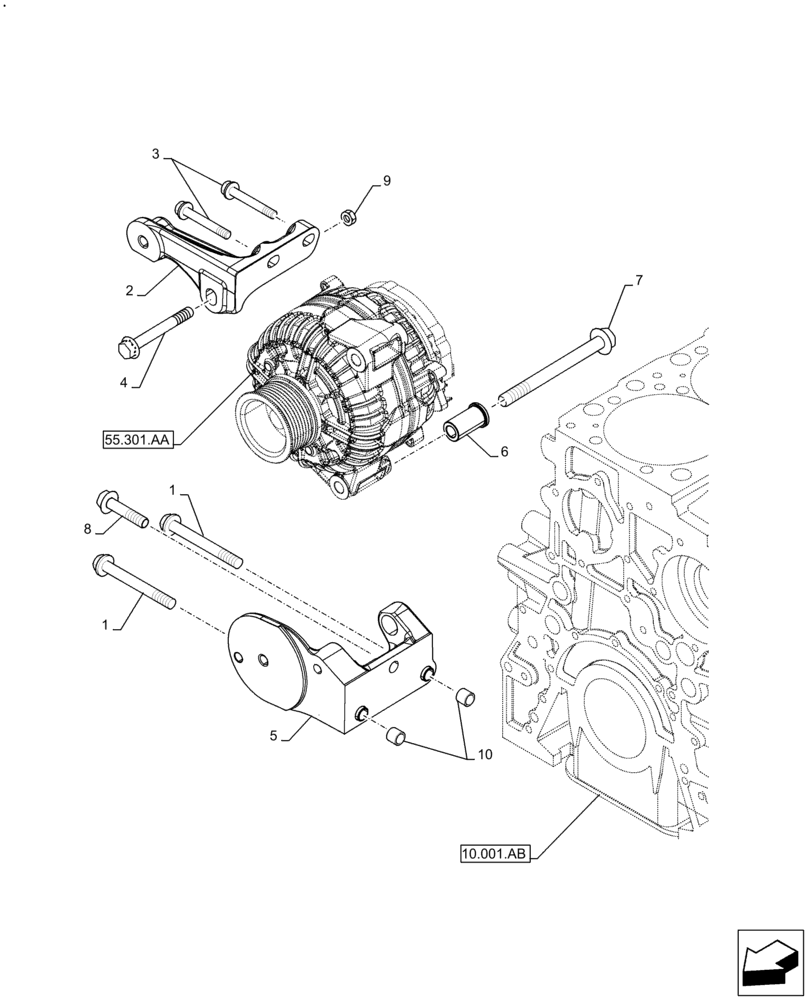

/ / / / / / / / (55.301.AB) - ALTERNATOR, SUPPORT
Запчасти Case F2CFA614A E011 (55.301.AB) - ALTERNATOR, SUPPORT (55) - ELECTRICAL SYSTEMS
10.001.ab
1
55.301.aa
8
5
2
10
1
4
7
3
9
6
1
16587525
BOLT,M10 x 45mm
2шт.
2
504290062
BRACKET, SUPPORTING
1шт.
3
16673735
BOLT,Hex, M8 x 1.25 x 25mm
2шт.
4
16587125
SCREW,M10
1шт.
5
504290061
BRACKET, SUPPORTING
1шт.
6
99484032
BUSHING
1шт.
7
16592925
SCREW,M10 x 1.5 x 80mm
1шт.
8
16592925
SCREW,M10 x 1.5 x 80mm
1шт.
9
17038125
FLANGE
1шт.
10
98405462
DOWEL
2шт.
