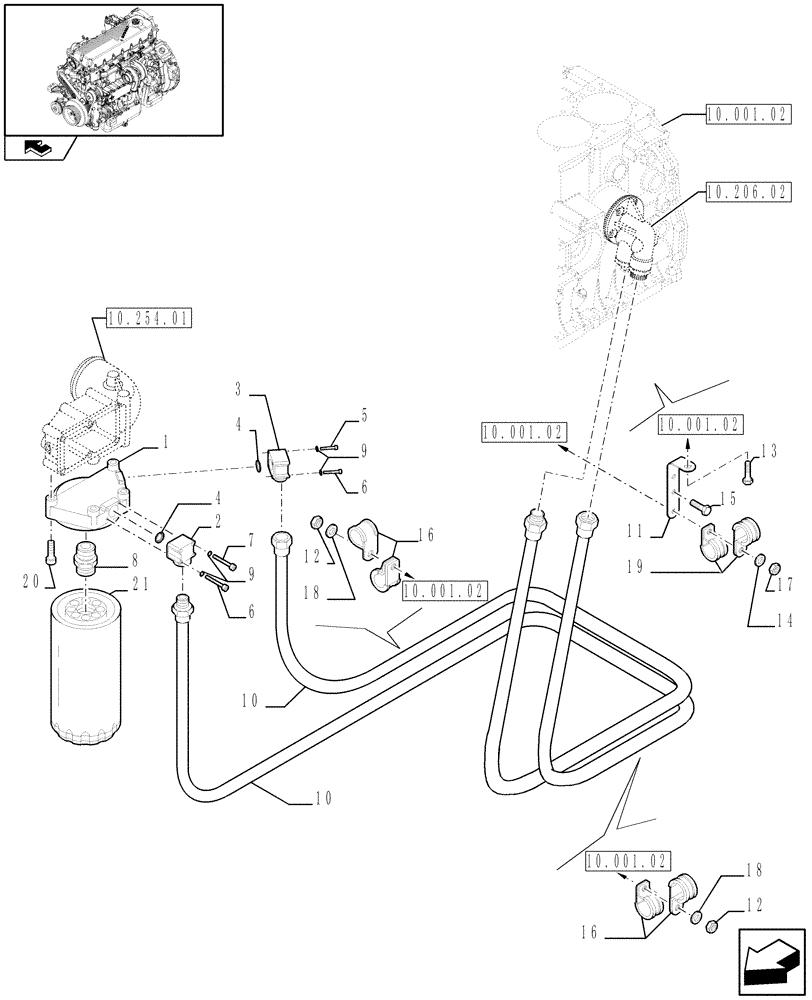

Запчасти Case F2CE9684U E151 (10.250.03[02]) - TURBOBLOWER PIPES (504218111 - 504179761) (01) - ENGINE

1

504218098

BRACKET

1шт.

2

504005572

ELBOW

1шт.

3

98481998

FITTING

1шт.

4

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

2шт.

5

16689724

SCREW,M6 x 45mm

M6 x 45

2шт.

6

16689824

SCREW,M6 x 50mm

M6 x 50

4шт.

7

16689924

SCREW

2шт.

8

99431947

HYD CONNECTOR

M30 x 20

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

D = 6 x 12

8шт.

10

504218108

HYD TUBE

2шт.

11

500320255

BRACKET

1шт.

12

2852389

FLANGE NUT

M8

3шт.

13

2852323

SCREW,M8 x 1.25 x 14mm

M8 x 14

1шт.

14

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

D = 6 x 12

1шт.

15

2854702

SCREW,Hex Flg, M6 x 20mm

M6 x 20

1шт.

16

17317390

CLAMP

D = 28

6шт.

17

16750125

M6

NUT

1шт.

18

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

D = 8 x 16

3шт.

19

17315790

CLAMP

D = 28

2шт.

20

16692824

SCREW

M10 x 60

4шт.

21

504179764

ENGINE OIL FILTER

1шт.
