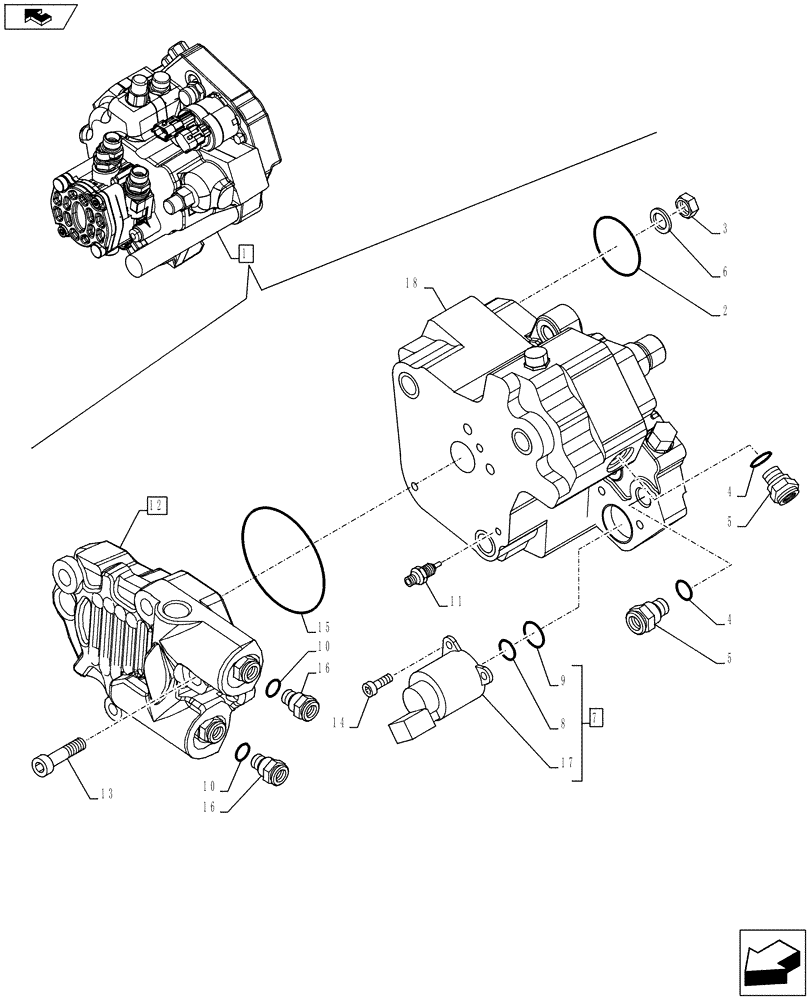

Запчасти Case F2CE9684U E026 (10.218.AQ[02]) - FUEL PUMP, COMPONENTS (10) - ENGINE

1

84385110

FUEL INJECTION PUMP

ASSY, Incl 2-12, 13, 14, 18

1шт.

1

84385110R

REMAN-INJECTION PUMP

1шт.

1

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

2

42549209

O-RING

D= 44 mm

1шт.

3

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

4

42556616

SEAL,12.2mm ID x 15.4mm OD x 1.5mm Thk

Rear

2шт.

5

42559146

UNION

2шт.

6

17095814

WASHER

1шт.

7

42541851

SOLENOID

ASSY, Incl 8, 9, 17

1шт.

8

42541850

O-RING

Green

1шт.

9

42541849

O-RING

Black

1шт.

10

93192980

SEAL

2шт.

11

42550486

VALVE

1шт.

12

42559145

FUEL PUMP

ASSY, Incl 15, 16

1шт.

13

42556891

SCREW

4шт.

14

42556819

SCREW

3шт.

15

42559144

O-RING

1шт.

16

42559146

UNION

2шт.

17

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 7

1шт.

18

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
