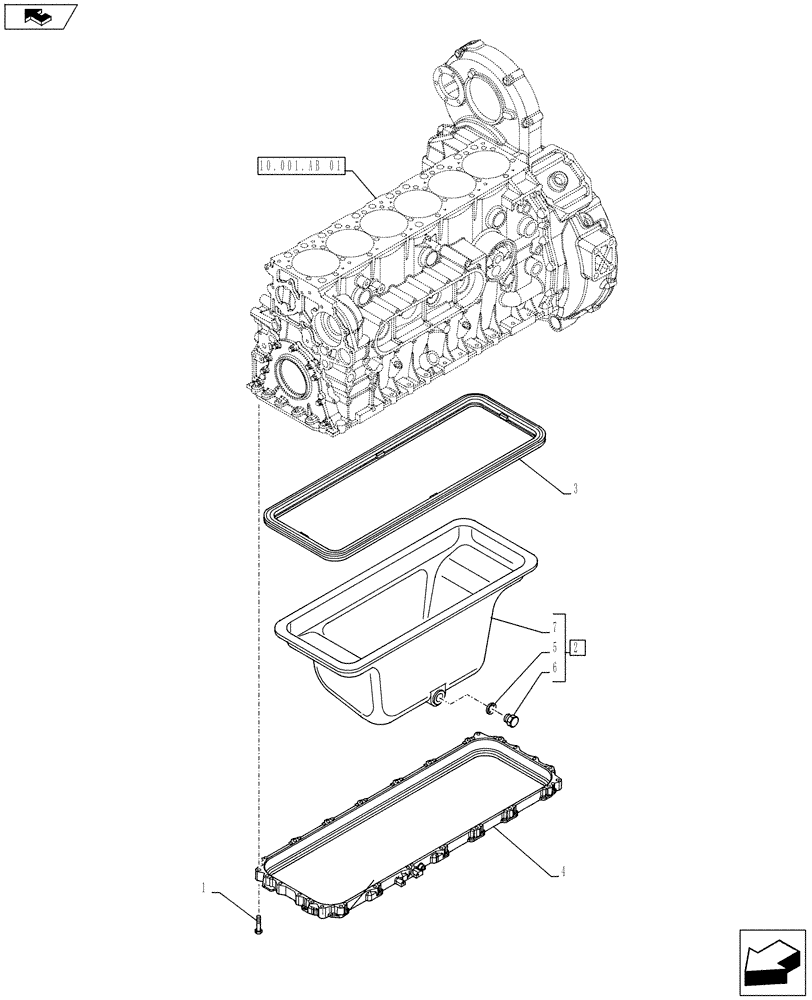

Запчасти Case F2CE9684U E026 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

16587525

BOLT,M10 x 45mm

M10 x 45 mm

26шт.

2

5801419489

ENGINE OIL PAN

ASSY, Incl 5-7

1шт.

3

504346309

GASKET

1шт.

4

504143828

SPACER

1шт.

5

16508460

SEAL

D= 22 x 27 x 1.5 mm

1шт.

6

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

7

NSS

NOT SOLD SEPARAT

Oil tank, Incl in 2

1шт.
