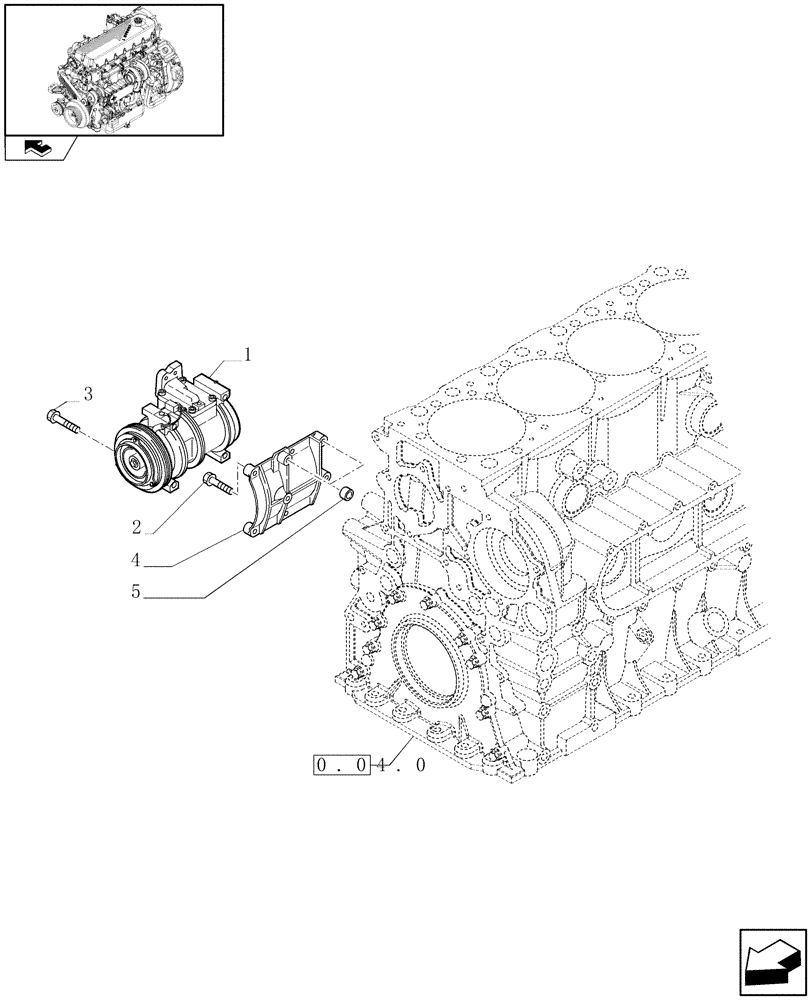

Запчасти Case F2CE9684H E010 (0.39.0) - COMPRESSOR, AIRCOND. (504231997)

1

504204545

AIRCOND. COMPRESSOR

ASSY

1шт.

2

2852155

BOLT,Flng, M8 x 1.25 x 80mm

M8 x 80

2шт.

3

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

3

2852355

SCREW

M10 x 25

1шт.

4

504165038

BRACKET

1шт.

5

98405462

DOWEL

D = 10,2

2шт.

6

2852326

SCREW

M10 x 40

3шт.
