(0.30.0) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

Запчасти Case F2CE9684E E015 (0.30.0) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

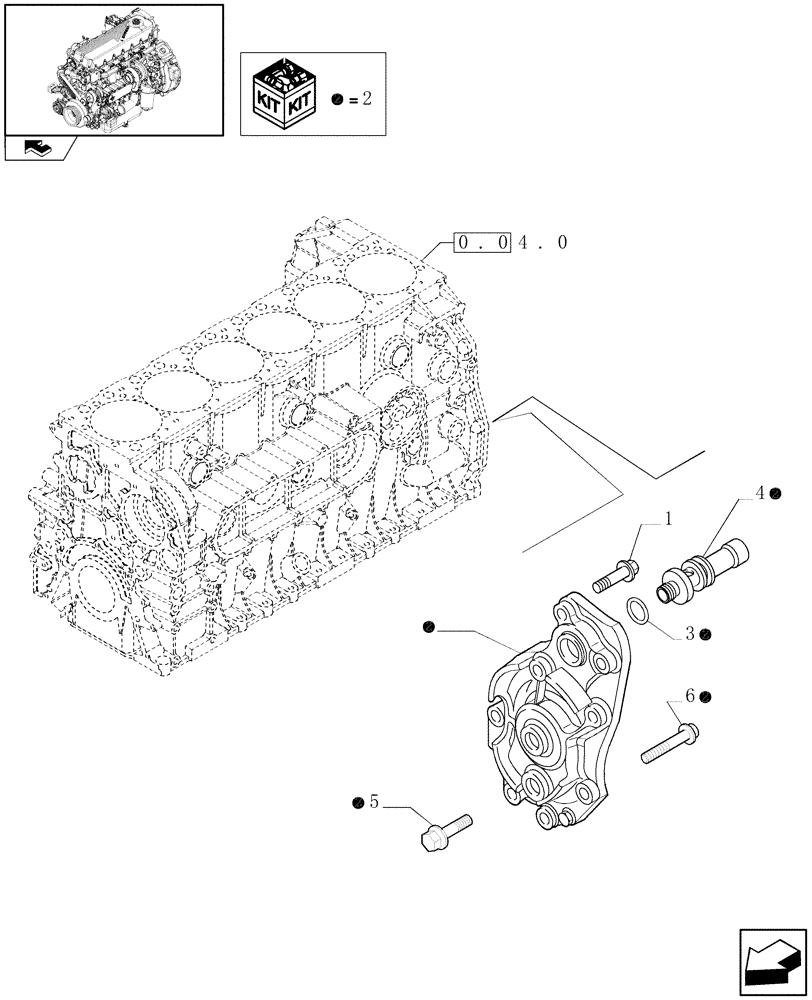

Схема запчастей Case F2CE9684E E015 - (0.30.0) - PUMP, ENGINE OIL & RELATED PARTS (504133121)
4
2
6
2
0.04.0
2
2
2
home
2
5
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500355363

SCREW

M8 x 1.25 x 60

5шт.

1

504010370

BOLT

M8 x 1.25 x 45

3шт.

2

504131225

ENGINE OIL PUMP

ASSY

1шт.

2

504131225R

REMAN-ENG OIL PUMP

ASSY

1шт.

2

504131225C

CORE-ENGINE OIL PUMP

Return Number

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

D = 21.8 x 2.6 mm

1шт.

4

500304389

SAFETY VALVE

1шт.

5

18137825

BOLT,Hex, M6 x 16mm

M6 x 16 mm

1шт.

6

16591725

SCREW,Hex, M6 x 40mm

1шт.
