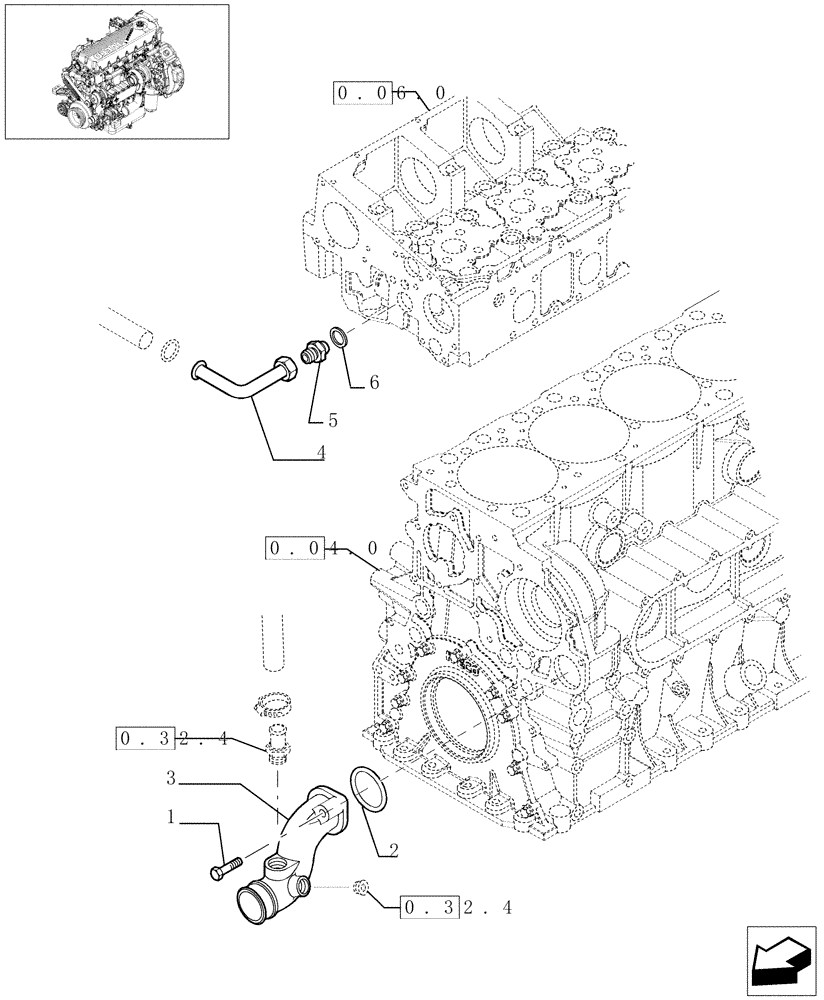

Запчасти Case F2CE9684D E001 (0.32.3[01]) - WATER PUMP PIPES (504213642-504153553)

1

16586925

BOLT,M8 x 50mm

M8 x 50

2шт.

2

14464681

O-RING,56.74mm ID x 2.512" OD x 3.53mm

D=56.74X3.53 mm

1шт.

3

504206985

TUBE

1шт.

4

500331700

TUBE

1шт.

5

504196249

FITTING

M10x1 / M16X1,5

1шт.

6

87665413

SEALING WASHER,7.9mm ID x 17.0mm OD x 1.5mm Thk

10X17X1,5

1шт.
