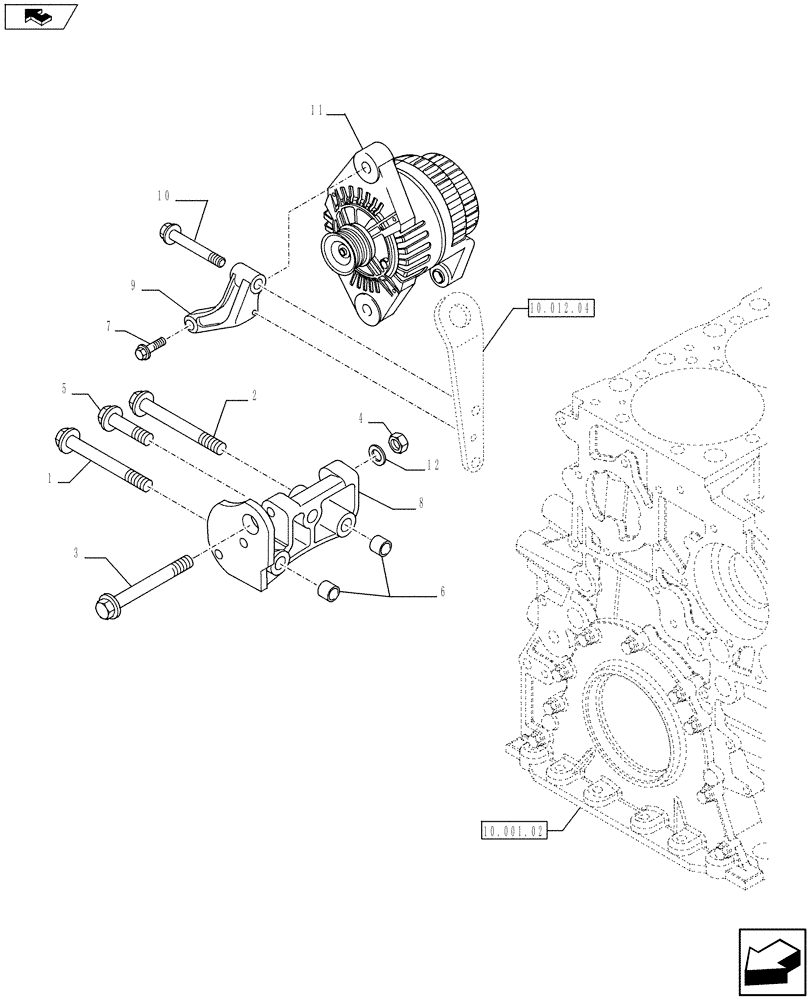

Запчасти Case F2CE9684C E017 (55.301.02) - ALTERNATOR (504383663) (06) - ELECTRICAL SYSTEMS

1

16587425

BOLT,M10 x 1.5 x 40mm

M10 x 1.5X40

1шт.

2

16592825

SCREW,Hex, M10 x 70mm, Cl 8.8

M10 x 70

1шт.

3

16600024

BOLT,M12 x 160mm

M12 x 160

1шт.

4

337475

NUT,M12, Cl 10

M12

1шт.

5

16692024

BOLT,Flng, M10 x 20mm

M10 x 20

1шт.

6

98405462

DOWEL

D = 10.2

2шт.

7

16934525

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

1шт.

8

504212823

BRACKET

1шт.

9

504212894

BRACKET

1шт.

10

16588625

BOLT,Hex, M12 x 60mm, Cl 8.8

2шт.

12

17095314

WASHER

D=12 x 24 mm

1шт.
