(10.304.01 01) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

Запчасти Case F2CE9684C E017 (10.304.01 01) - PUMP, ENGINE OIL & RELATED PARTS (504133121) (01) - ENGINE

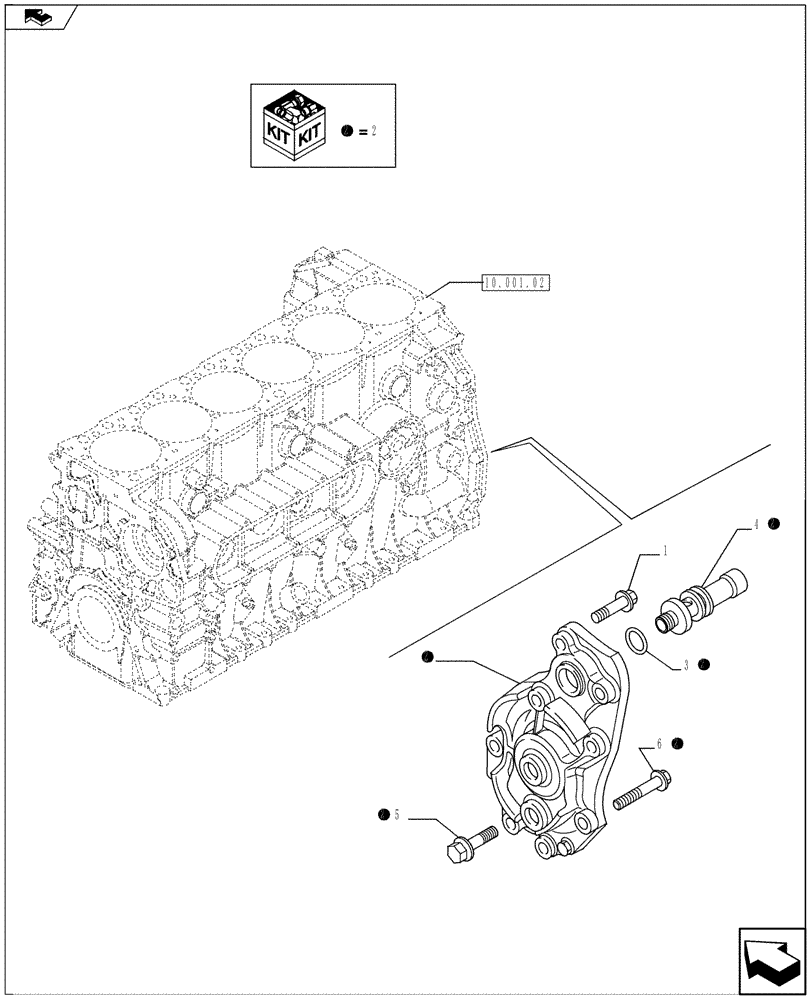

Схема запчастей Case F2CE9684C E017 - (10.304.01 01) - PUMP, ENGINE OIL & RELATED PARTS (504133121) (01) - ENGINE
1
10.001.02
6
2
4
2
home
2
2
2
2
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500355363

SCREW

M8 x 1.25 x 60

5шт.

1

504010370

BOLT

M8 x 1.25 x 45

3шт.

2

504131225

ENGINE OIL PUMP

ASSY

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

D = 21.8 x 2.6 mm

1шт.

4

500304389

SAFETY VALVE

1шт.

5

16585724

BOLT,M6 x 16mm, Cl 8.8

M6 x 16 mm

1шт.

6

16591725

SCREW,Hex, M6 x 40mm

1шт.

Выбрано товаров: 7
