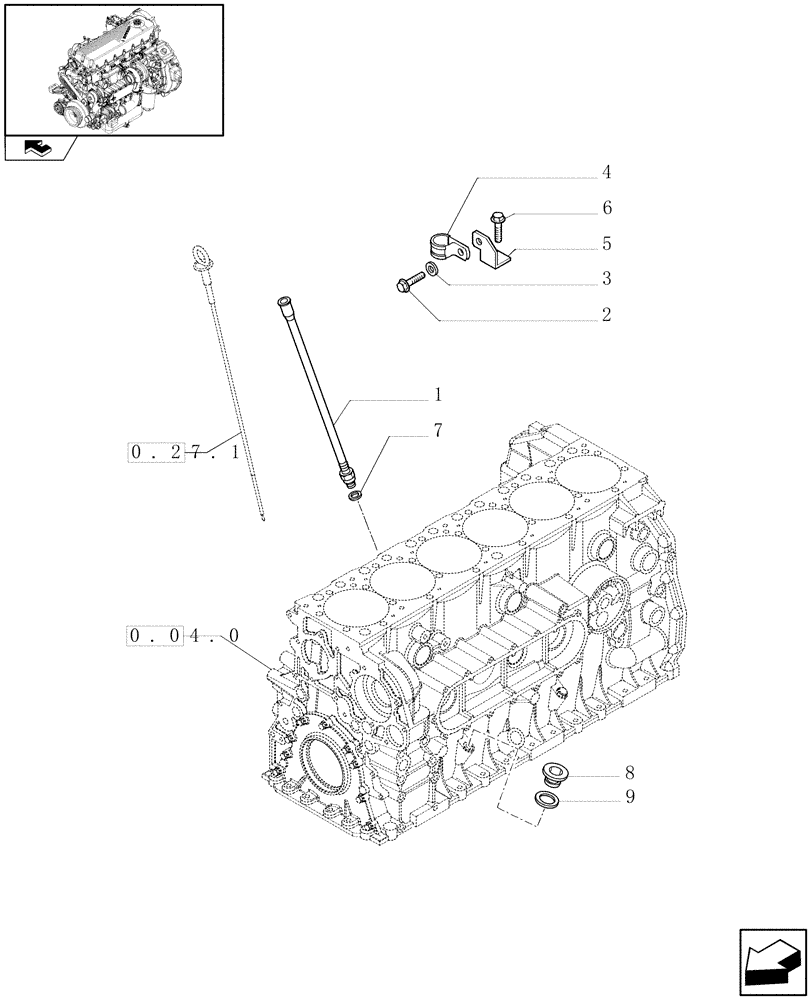

Запчасти Case F2CE9684C E015 (0.27.0) - OIL LEVEL CHECK (504279536 - 504055391)

1

504323917

TUBE

1шт.

2

16586225

BOLT,M8 x 16mm

1шт.

3

16666716

WASHER

1шт.

4

17316699

CLAMP

D = 14 mm

1шт.

5

4791406

BRACKET

1шт.

6

16587025

SCREW,Hex, M10 x 20mm, Cl 8.8

1шт.

7

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

D = 18 x 26 mm SP = 1,5 mm

1шт.

8

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

9

2855325

SEAL

D = 12 x 20 mm SP = 1,5 mm

2шт.
