(0.30.0[01]) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

Запчасти Case F2CE9684C E002 (0.30.0[01]) - PUMP, ENGINE OIL & RELATED PARTS (504133121)

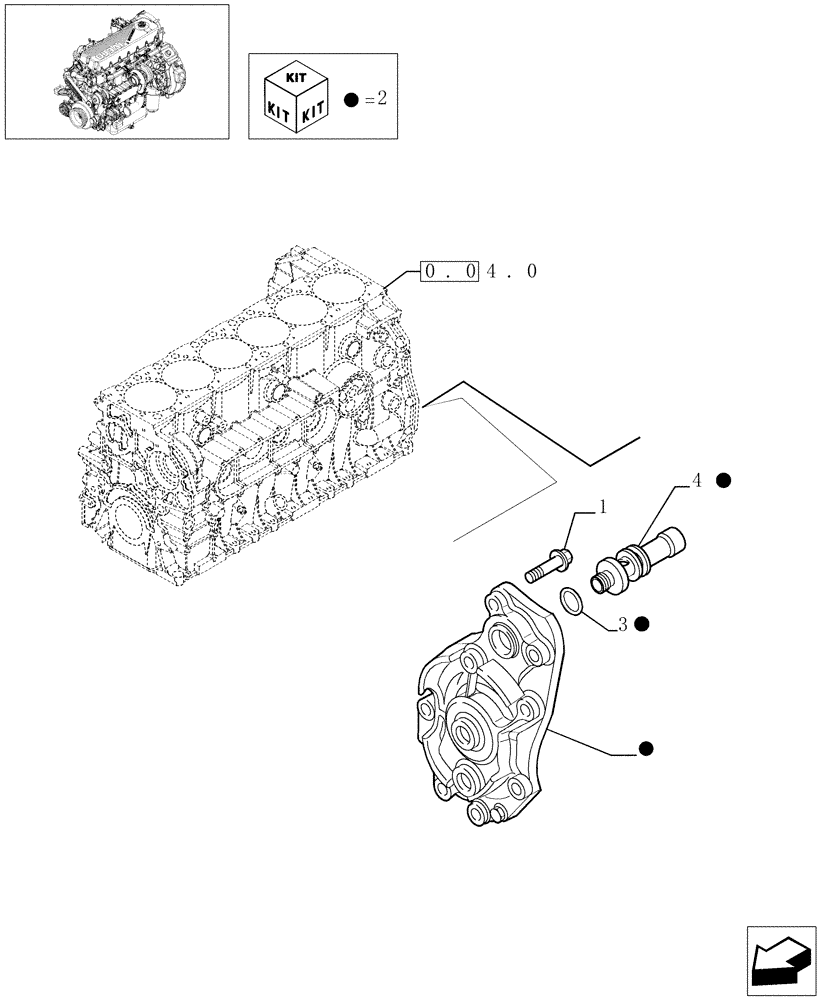

Схема запчастей Case F2CE9684C E002 - (0.30.0[01]) - PUMP, ENGINE OIL & RELATED PARTS (504133121)
3
0.04.0
4
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500355363

SCREW

M8 x 1.25 x 60

5шт.

1

504010370

BOLT

M8 x 1.25 x 45

3шт.

2

504131225

ENGINE OIL PUMP

- ASSY

1шт.

2

504131225R

REMAN-ENG OIL PUMP

Assy

1шт.

2

504131225C

CORE-ENGINE OIL PUMP

Return Number

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

D=21.8X2.6 mm

1шт.

4

500304389

SAFETY VALVE

1шт.
