Запчасти Case 336B (14) - 336BD & 336BDT DIESEL ENGINES, CAMSHAFT

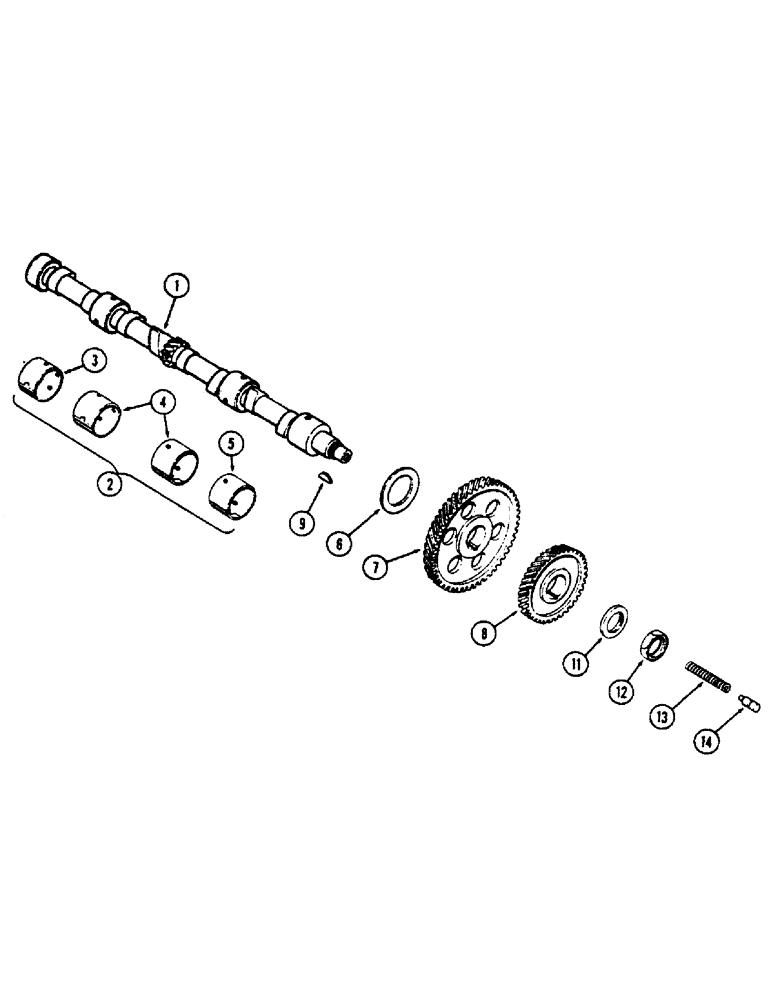

Схема запчастей Case 336B - (14) - 336BD & 336BDT DIESEL ENGINES, CAMSHAFT
14
1
9
12
11
2
7
4
5
6
8
3
13

Артикул

Название

Примечание

Количество

1

A66742

CAMSHAFT

- engine (Replaces A62733)

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-7/16" wide)

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro

1шт.

11

A31038

THRUST WASHER

- lock, camshaft nut (Replaces A58594)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

A27853

SPRING

- plunger, camshaft thrust

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 13
