Запчасти Case 336B (10) - 336BD & 336BDT DIESEL ENGINES, CYLINDER HEAD & COVER

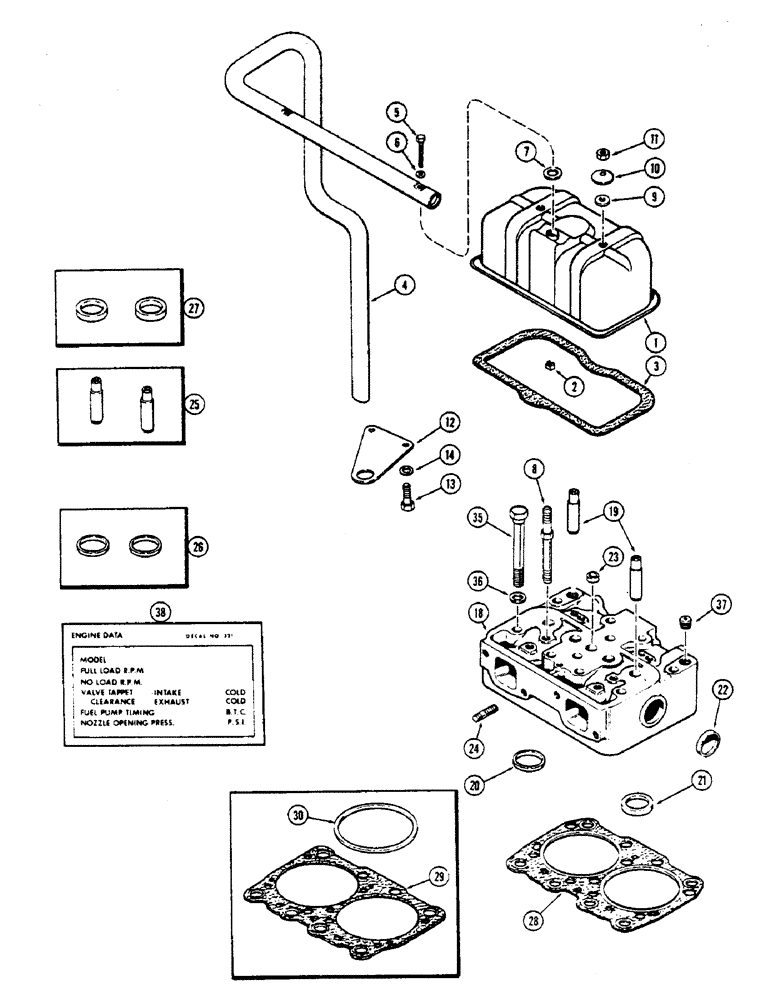

Схема запчастей Case 336B - (10) - 336BD & 336BDT DIESEL ENGINES, CYLINDER HEAD & COVER
2
6
36
13
35
26
38
25
11
12
21
22
5
3
1
9
27
8
7
4
10
23
20
19
24
30
14
28
37
29
18

Артикул

Название

Примечание

Количество

1

A58929

COVER

ASSY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

2шт.

4

A58733

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

6

A34133

GASKET

- breather tube screw

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

2шт.

8

A67121

STUD

- rocker arm brkt. & cyl. head cover

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

- cover stud, beveled

4шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

12

A58734

BRACKET

- breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. Sems

2шт.

14

195-25

WASHER,3/8"

- spacer, 13/32 x 13/16 x 1/16"

8шт.

18

A60558

CYLINDER HEAD

HEAD ASSY - cylinder (Replaces A58618), Includes: Ref. 19 - 23

2шт.

19

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valve (Order ref. 25)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order ref. 26)

2шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (order ref. 27)

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup

1шт.

24

A59077

STUD

- 3/8" N.C. x 1-13/16"

16шт.

25

A41781

GUIDE

KIT - intake & exhaust valves (Set of 2)

4шт.

26

A42259

INSERT

KIT - intake valve seat (Set of 2)

2шт.

27

A44576

INSERT

KIT - exhaust valve (Set of 2) (Replaces A41757)

2шт.

28

A138149

GASKET

- cylinder head, w/fire rings (Replaces A59121 & A64113) (1st used eng. ser. no. 2511310)

2шт.

29

A59121

CYLINDER HEAD GASKET

- cylinder head (Order A138149) (Used prior to eng. ser. no. 2511310)

2шт.

30

A58622

RING

- fire, std. (Plain) (Used w/A59121 gasket) (Used prior to eng. seri. no. 2511310)

4шт.

30

A42596

- fire (Oversize) (w/blue stripe) (Used w/A59121 gasket) (Used prior to eng. ser. no. 2511310)

1шт.

35

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex.

20шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" hex. sckt. hd.

4шт.

38

321-2310

DECAL

- engine data

1шт.

Выбрано товаров: 32
