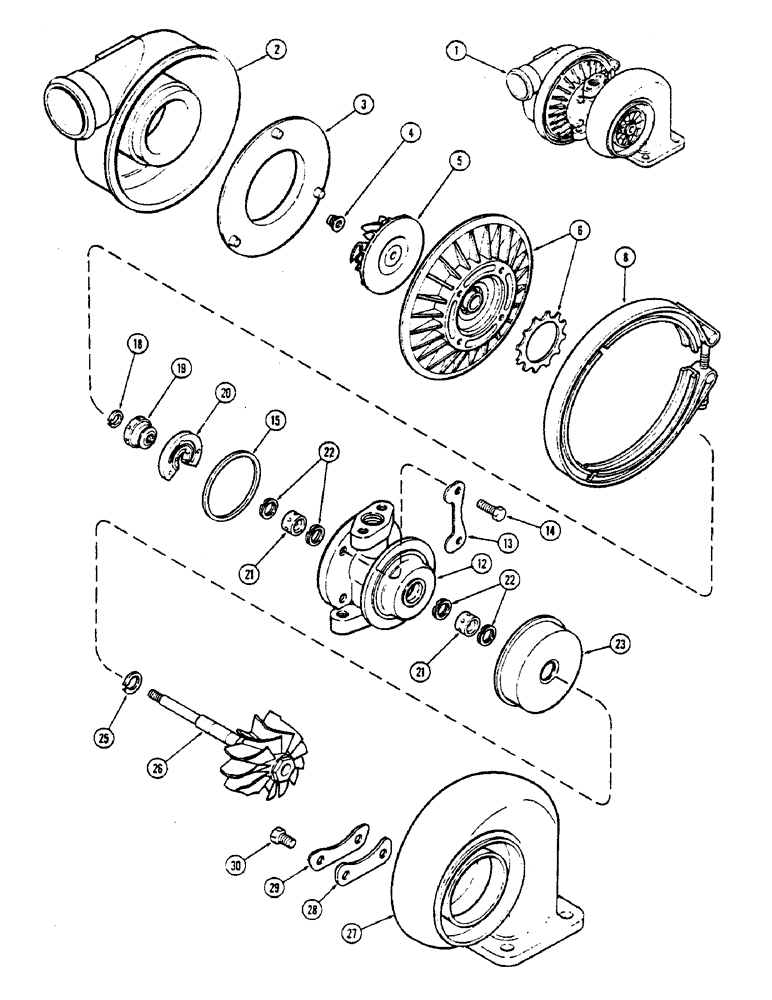

Запчасти Case 336B (08) - 336BDT TURBOCHARGED ENGINES, A42166 TURBO-CHARGER

1

A42166

REMAN-TURBOCHARGER

TURBO-CHARGER ASSY, Includes: Ref. 2 - 30

1шт.

2

A44855

HOUSING - compressor wheel

1шт.

3

A44854

DIFFUSER

1шт.

4

A44831

NUT

- lock, compressor wheel

1шт.

5

A44852

IMPELLER

WHEEL - compressor impeller

1шт.

6

A44844

PLATE

BACKPLATE ASSY - w/thrust spring

1шт.

8

A44822

CLAMP

ASSY - band, Serial Range: backplate-housing

1шт.

12

A44825

HOUSING

ASSY - center, w/spring pin

1шт.

13

A44820

PLATE

LOCKPLATE - center housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

SEAL - center housing, 2-1/4 x 2-3/8 x 1/16"

1шт.

18

A44828

RING

- piston, 1/2" O.D.

1шт.

19

A44830

COLLAR

- thrust

1шт.

20

A44832

THRUST BEARING,0.172"

BEARING - thrust

1шт.

21

A44826

BEARING

- center hsg. (Std.), 13/32 x 5/8 x 13/32"

2шт.

21

A44849

BUSHING

BEARING - center hsg. (.005" undersize)

1шт.

21

A44850

BUSHING

BEARING - center hsg. (.010" undersize)

1шт.

22

A44827

RING

- snap, bearing retaining

4шт.

23

A44834

GUARD

SHROUD - side wheel

1шт.

25

A44829

RING

- piston, 3/4" O.D.

1шт.

26

A44851

WHEEL ASSY - turbine

1шт.

27

A44853

HOUSING - turbine

1шт.

28

A44823

CLAMP

- turbine housing, inner (3/32")

3шт.

29

A44824

PLATE

LOCKPLATE - turbine housing, outer (1/32")

3шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.
