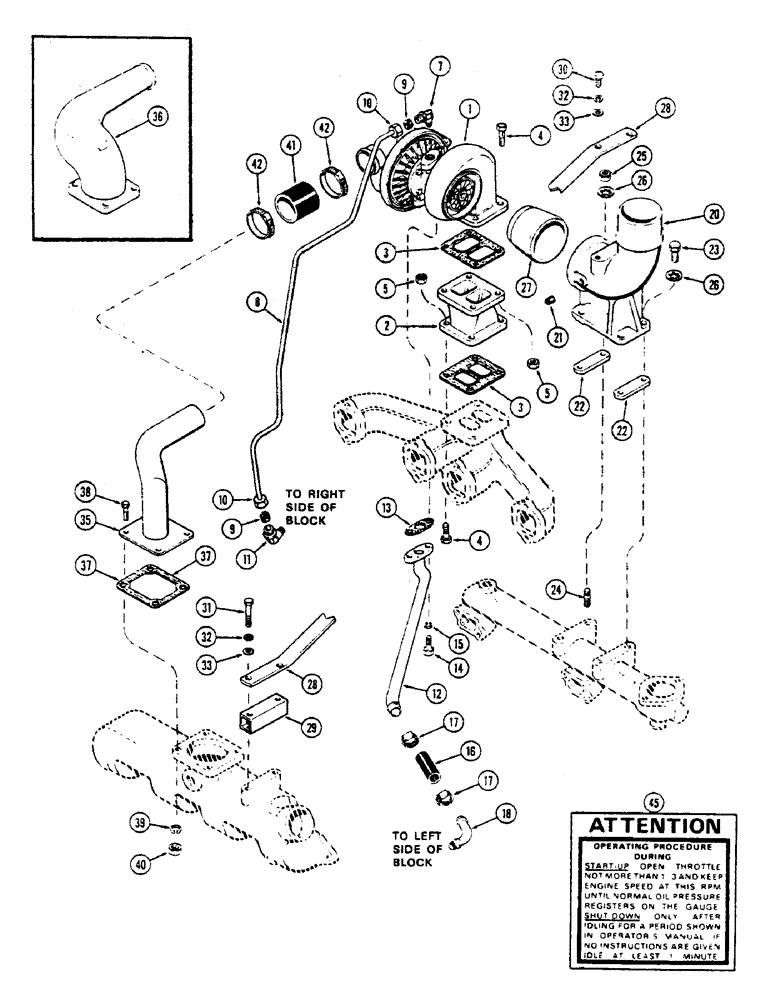

Запчасти Case 336B (06) - 336BDT TURBOCHARGED ENGINES, TURBO-CHARGER & ATTACHING PARTS

1

A42166

REMAN-TURBOCHARGER

TURBO-CHARGER ASSY - (Rebuilt) (Order for repairs) (See Figure 8)

1шт.

1

A42165

CORE

TURBO-CHARGER ASSY

1шт.

Do not use this part no. for ordering. This part no. is to be used in requesting return authority on used turbo-chargers to be returned for credit.

1шт.

2

A61002

ADAPTER

BASE - turbo-charger adapter

1шт.

3

A58899

GASKET,0.45mm Thk

- turbo-charger

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf

8шт.

7

222-4047

ELBOW

-, Serial Range: tube-turbo-charger

1шт.

8

A62477

TUBE

ASSY - turbo-charger oil supply, Includes: Ref. 9 and 10

1шт.

9

222-154

SLEEVE,3/8" Tube

- For 3/8" Tube

2шт.

10

222-114

NUT,5/8"-24

NUT - For 3/8" tube

2шт.

11

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- oil supply tube to block

1шт.

12

A59228

TUBE

ASSY - turbo-charger oil drain

1шт.

13

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

16

A58893

HOSE

- drain, Serial Range: tube-fitting

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

18

A59234

FITTING

- turbo-charger drain

1шт.

20

A61941

ELBOW

- turbo-charger exhaust

1шт.

21

222-12

FITTING,7/16"-24 Inv Fl x 1/8" NPT Fem

PLUG - 1/4" sq. hd. pipe

1шт.

22

A59237

SPACER

-, Serial Range: elbow-manifold

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

24

A58689

STUD

- 3/8" N.C. x 1-7/8"

1шт.

25

131-903

NUT,3/8"-16

NUT - 3/8" - 16 N.C. Seez-Pruf

1шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

A65554

TUBE

CONNECTOR, exhaust elbow

1шт.

28

A61942

BRACE

- elbow to intake manifold

1шт.

29

A67057

SPACER

- intake manifold (Replaces A61945)

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

31

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Brace to manifold) Hex, 3/8"-16 x 2 1/4", G5

2шт.

32

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

33

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

35

A77242

ELBOW

- air intake, turbo-charger (Formed tube) (1st used eng. ser. no. 2579516)

1шт.

36

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger (Cast iron) (Used prior to eng. seri. no. 2579516)

1шт.

37

A58910

GASKET

- elbow

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. (used w/A77242 elbow)

4шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used w/A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

39

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

41

A58894

HOSE

- air intake

1шт.

42

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

45

321-2605

DECAL

- turbo operating procedure

1шт.
