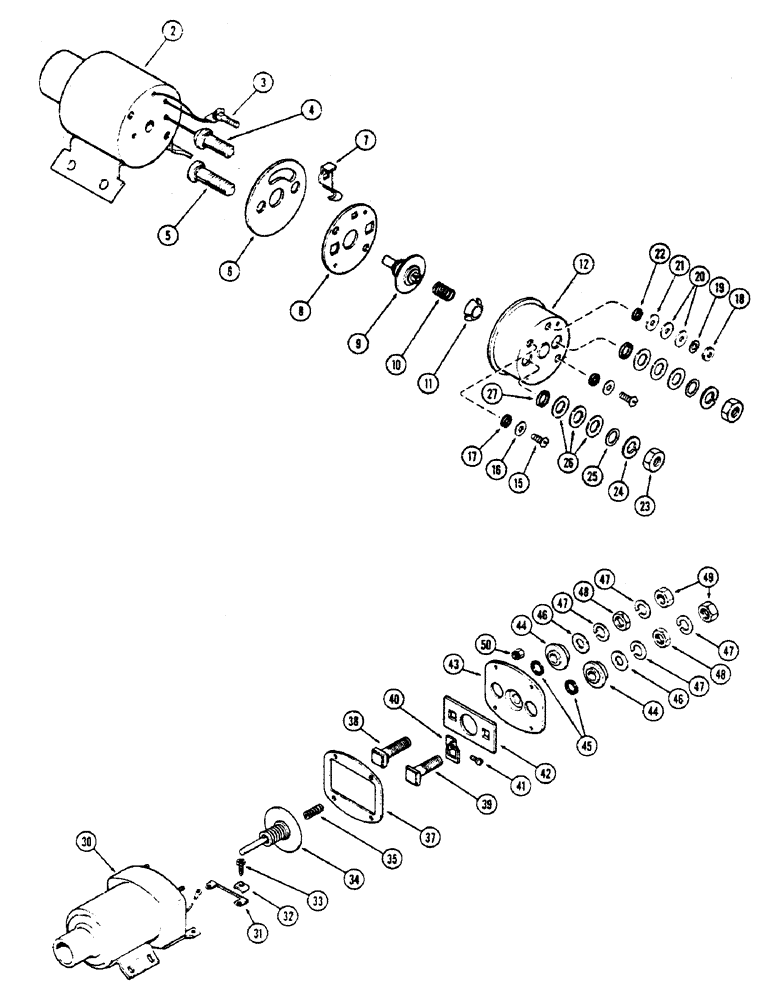

Запчасти Case 336B (60) - A43846 SOLENOID, 336BD & 336BDT DIESEL ENGINES, 12 VOLT

A43846

SOLENOID

ASSY. - (Delco #1115528), Includes: Ref. 2 - 27

1шт.

2

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY.

1шт.

3

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch

1шт.

4

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor

1шт.

5

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery

1шт.

6

A42377

GASKET

- solenoid cover

1шт.

7

A42384

CLIP

- solenoid terminal

1шт.

8

A42386

INSULATOR

- solenoid cover

1шт.

9

A42385

CONTACT

- solenoid

1шт.

10

A42059

SPRING

- contact return

1шт.

11

A42391

INSULATOR

- solenoid cover cap

1шт.

12

A42388

COVER

- solenoid

1шт.

15

A42380

SCREW,#10 - 32 x 9/16"

- #10 N.F. nylock

2шт.

16

A42378

WASHER

- 3/16 x 1/2 x 1/32"

2шт.

17

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

2шт.

18

129-37

NUT,#10-32

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

20

R16177

WASHER

- 3/16 x 1/2 x 3/64"

2шт.

21

A42390

WASHER

- 3/16 x 1/2 x 1/16"

1шт.

22

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

R15013

WASHER

- 25/64 x 11/16 x 1/16"

2шт.

26

A42379

WASHER

- 25/64 x 3/4 x 1/16"

8шт.

27

A42389

WASHER

- 3/8 x 17/32 x 3/32" rubber

2шт.

A42376

SWITCH

SOLENOID ASSY. - (Delco-Remy #1119848), 24 volt, Includes: Ref. 30 - 50

1шт.

30

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil, A42376 solenoid 24 volt

1шт.

31

A42408

ELECTRICAL WIRE

LEAD - ground, A42376 solenoid 24 volt

1шт.

32

A42407

CLAMP

CLIP - terminal, A42376 solenoid 24 volt

2шт.

33

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip, A42376 solenoid 24 volt

2шт.

34

D32498

CONTACT

DISC ASSY. - contact, A42376 solenoid 24 volt

1шт.

35

A42411

VALVE SPRING

SPRING - contact disc return, A42376 solenoid 24 volt

1шт.

A42412

PLATE

ASSY., Includes: Ref. 37 - 49, A42376 solenoid 24 volt

1шт.

37

A42260

GASKET

- solenoid, A42376 solenoid 24 volt

1шт.

38

A42413

STUD

- battery term, 5/8" thread length, A42376 solenoid 24 volt

1шт.

39

D32506

STUD

- starter term., 1-3/16" thread length, A42376 solenoid 24 volt

1шт.

40

A42406

SUPPORT

- coil lead, A42376 solenoid 24 volt

1шт.

41

175-56

SCREW - #10 x 3/16" N.C. truss. hd., A42376 solenoid 24 volt Slotted Truss Hd, #6-32 x 3/16"

1шт.

42

D32507

RUBBER INSULATOR

INSULATOR - plate, A42376 solenoid 24 volt

1шт.

43

A42410

PLATE

- terminal, A42376 solenoid 24 volt

1шт.

44

A42409

BUSHING

- term. studs insulating, A42376 solenoid 24 volt

2шт.

45

D32510

BUSHING

- term. studs, 1/2 x 11/16 x 3/32" rubber, A42376 solenoid 24 volt

2шт.

46

D30006

WASHER

- term. studs, 1/2 x 7/8 x 1/32", A42376 solenoid 24 volt

2шт.

47

192-113

LOCK WASHER,1/2"

WASHER - lock, , A42376 solenoid 24 volt 1/2"

4шт.

48

129-145

JAM NUT,Jam, 1/2"-13, G5

A42376 solenoid 24 volt Jam, 1/2"-13, G5

2шт.

49

129-105

NUT,Hex, 1/2" - 13, Gr 5

A42376 solenoid 24 volt 1/2"-13, G5

2шт.

50

D32500

NUT

- plate to case, w/skpf. washer, A42376 solenoid 24 volt

4шт.
