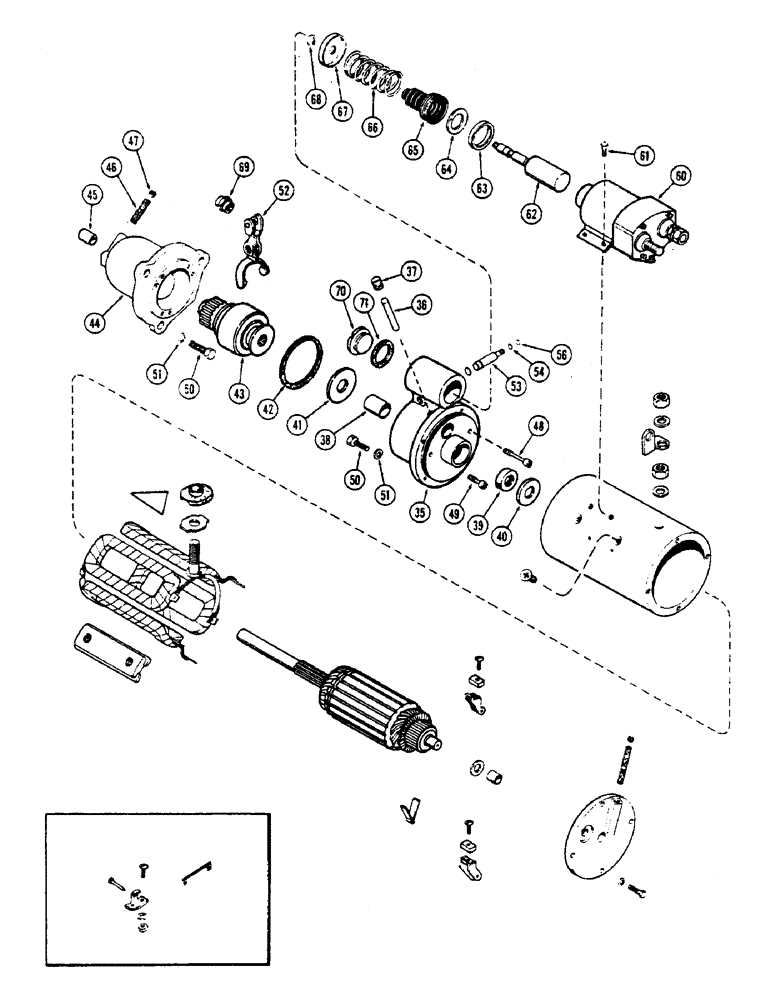

Запчасти Case 336B (58) - R26136 STARTER, 336BDT TURBOCHARGED ENGINES, 24 VOLT

R26136

STARTER MOTOR

STARTER ASSY. - Includes: Ref. 35 - 71 and 1 - 33 on figure 56

1шт.

35

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 36 - 39

1шт.

36

R15023

WICK

- oil

1шт.

37

221-1849

PLUG

- oil wick hole

1шт.

38

R21580

BUSHING

- 13/16 x 1 x 1-1/4"

1шт.

39

R21582

OIL SEAL

- oil, 13/16 x 1-3/8 x 3/8"

1шт.

40

D40892

X

WASHER - thrust, 7/8 x 1-3/4 x 3/16"

1шт.

41

R15145

DISC

WASHER - brake, 7/8 x 1-7/8 x 3/16"

1шт.

42

R21562

GASKET

- drive hsg. to lever hsg.

1шт.

43

A42397

DRIVE

ASSY. - starter

1шт.

44

A44340

HOUSING

ASSY. - drive end, Includes: Ref. 45 - 47

1шт.

45

A40893

BUSHING

- 5/8 x 3/4 x 3/4"

1шт.

46

R15023

WICK

- oil

1шт.

47

221-1849

PLUG

- oil wick hole

1шт.

48

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - 5/16 x 1-1/2" N.C. hex. sckt. hd.

1шт.

49

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - 5/16 x 7/8" N.C. hex. sckt. hd.

1шт.

50

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

51

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

52

D32547

LEVER

- shift

1шт.

53

A42199

PIN

SHAFT - shift lever pivot

1шт.

54

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - 1/4 x 3/8 x 1/16"

1шт.

55

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - 3/8 x 1/2 x 1/16"

1шт.

56

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

60

A42376

SWITCH

SOLENOID ASSY. - (See Figure 60)

1шт.

61

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- 1/4 X 3/8" N.F. hex.

4шт.

62

A42309

PLUNGER

- solenoid

1шт.

63

A41922

WASHER

- 7/8 x 1-3/8 x 1/32"

1шт.

64

A43380

BACK-UP RING

RETAINER - spring, inner (1-3/8" hole)

1шт.

65

A42308

BOOT

- solenoid plunger (Rubber)

1шт.

66

A41242

SPRING

- plunger return

1шт.

67

A43419

SEAT

RETAINER - spring, outer (3/8" hole)

1шт.

68

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

69

47-310

RIVET,FH, 3/16" x 5/8"

NUT - retaining, return spring

1шт.

70

R21587

PLUG

- lever housing

1шт.

71

A41924

GASKET

- housing plug

1шт.
