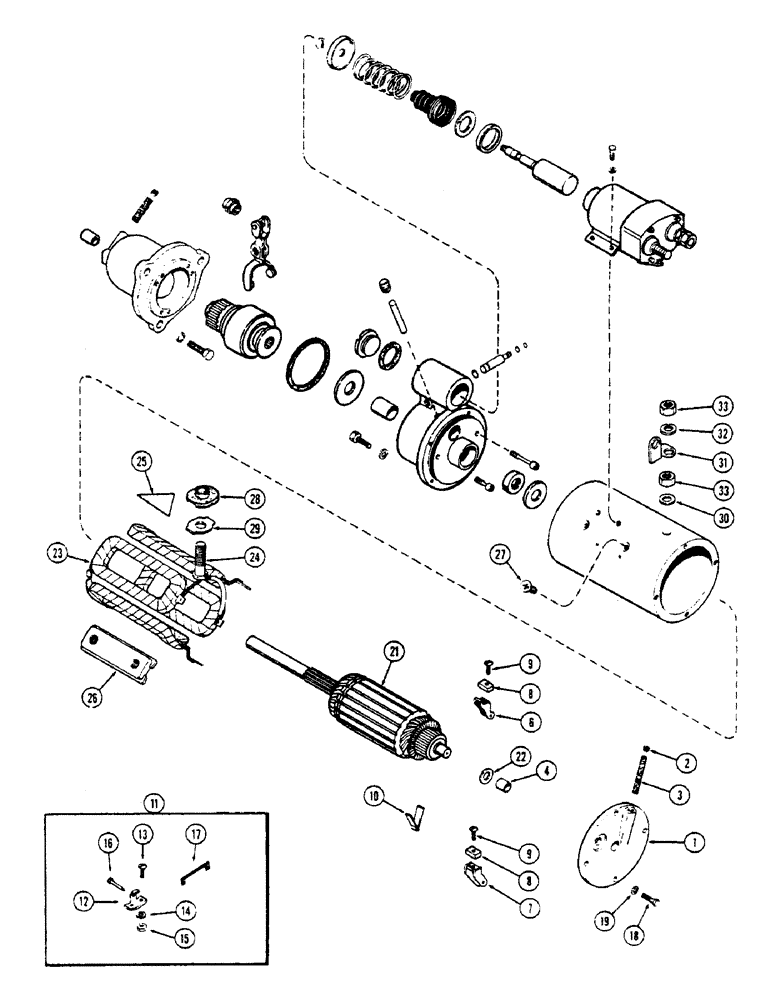

Запчасти Case 336B (56) - R26136 STARTER, 336BDT TURBOCHARGED ENGINES, 24 VOLT

R26136

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1113403), Includes: Ref. 1 - 33 and 35 - 71 on figure 58

1шт.

1

A43861

ASSY. - commutator end, Includes: Ref. 2 and 3

1шт.

2

221-1849

PLUG

- oil wick hole

1шт.

3

R15023

WICK

- oil

1шт.

4

A42323

BUSHING

- frame

1шт.

6

R21590

HOLDER

- brush, insulated

2шт.

7

A40217

HOLDER

- brush, ground

2шт.

8

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - #8-32 x 13/16" fill. hd. self-tapping, w/washer

4шт.

10

R15025

SPRING

- brush tension

2шт.

11

R15029

BRUSH

KIT - brush support, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

13

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

- #10 x 3/4" N.F., truss. hd.

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - #10 N.F. hex.

2шт.

16

R15035

PIN

- brush holder

1шт.

17

R15030

ELECTRICAL WIRE

LEAD - brush

1шт.

18

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

A40909

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, 9/16 x 1 x 1/16"

1шт.

23

A43860

COIL

ASSY. - field, Includes: Ref. 24

1шт.

24

A40896

STUD

- starter terminal, 1/2" N.C.

1шт.

25

A41977

RUBBER INSULATOR

INSULATION - coil terminal stud

1шт.

26

R15115

SHOE

- pole

4шт.

27

A42127

SCREW,3/8" - 24 x 0.20"

- 3/8 x 7/16" x N.F. flat, Phillips hd.

8шт.

28

A41925

BUSHING

- stud insulating (In frame)

1шт.

29

D30005

INSULATOR

- stud, 1/2 x 1 x 3/32"

1шт.

30

D30006

WASHER

- stud, 1/2 x 7/8 x 1/32"

1шт.

31

A40894

CONNECTOR, ELEC

CONNECTOR - term., Serial Range: stud-solenoid

1шт.

32

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

33

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
