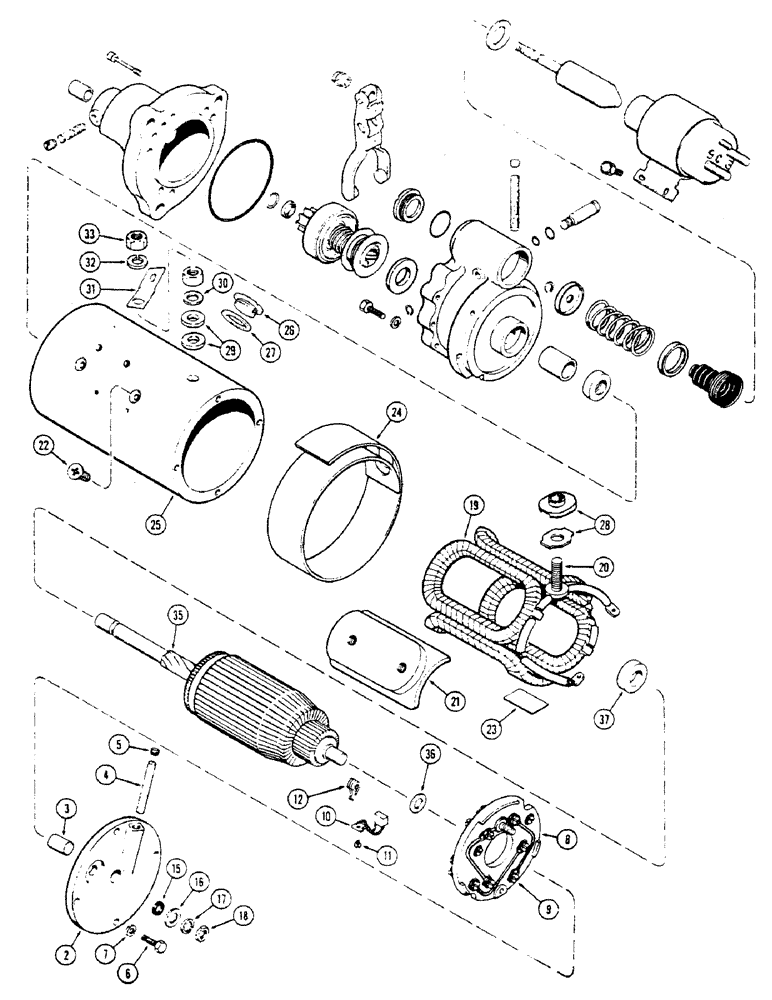

Запчасти Case 336B (52) - A64907 STARTER, 336BD & 336BDT DIESEL ENGINES

A64907

ELECTRIC MOTOR

STARTER ASSY. - (Delco #1113399), Includes: Ref. 2 - 37 and 40 - 76 on figure 54

1шт.

2

A43849

FRAME

ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

A42323

BUSHING

- frame, 35/64 x 11/16 x 57/64"

1шт.

4

R15023

WICK

- oil

1шт.

5

221-1849

PLUG

- 1/8" hex. sckt. hd., pipe

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

A43850

PLATE

BRUSH PLATE ASSY., Includes: Ref. 9 - 12

1шт.

9

A43847

SCREW,3/8" - 32 x 1/2"

- brush plate attaching, w/washer

1шт.

10

A40891

BRUSH, COMMUTATOR

BRUSH ASSY.

4шт.

11

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush attaching, #8 x 5/16" rd. hd. machine

4шт.

12

A42333

SPRING

- brush

4шт.

15

A42085

BUSHING

BRUSHING - commutator end terminal

1шт.

16

R15013

WASHER

- 3/8 x 11/16 x 1/16"

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

A42332

COIL

FIELD COIL ASSY. - (4 coils), Includes: Ref. 20

1шт.

20

A40896

STUD

- terminal, 1/2" N.C. x 2-1/8" special

1шт.

21

R15115

SHOE

- pole

4шт.

22

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoe, 3/8 x 3/16" N.F. pan hd. Phillips

8шт.

23

A42327

INSULATOR

- field coil, 1-13/16 x 2 x 1/64"

2шт.

24

A42848

PISTON

INSULATOR - field coil

1шт.

25

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

26

R21587

PLUG

- inspection, commutator end

1шт.

27

A41924

GASKET

- plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

28

A41925

BUSHING

PACKAGE - field terminal stud

1шт.

29

D30005

INSULATOR

WASHER - insulator, terminal stud, 33/64 x 1 x 3/32"

2шт.

30

D30006

WASHER

- 23/64 x 7/8 x 1/32" (Replaces A42404)

1шт.

31

A42343

CONNECTOR, ELEC

CONNECTOR - solenoid

1шт.

32

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

33

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

35

A43855

ARMATURE

1шт.

36

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature spacer, commutator end

1шт.

37

A43853

BUSHING

SPACER - armature, drive end

1шт.
