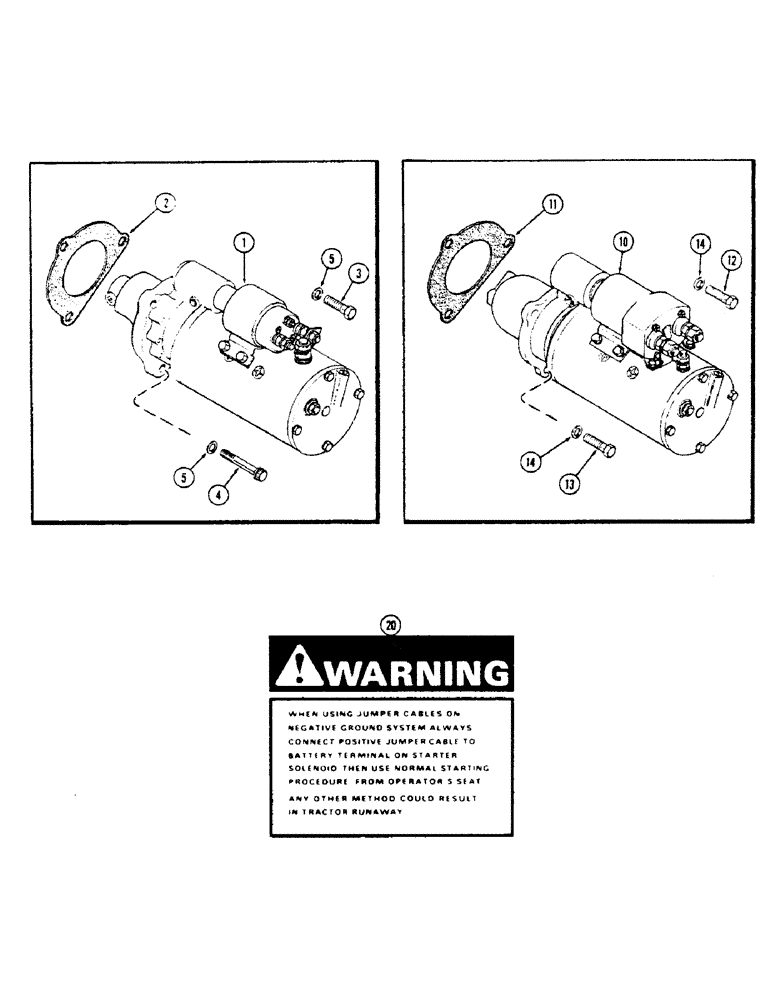

Запчасти Case 336B (50) - STARTER MOUNTING, 336BD & 336BDT DIESEL ENGINES

1

A64907

ELECTRIC MOTOR

STARTER ASSY. - 12 volt (See Figures 52 & 54)

1шт.

2

A27933

GASKET

- starting, Serial Range: motor-block

1шт.

3

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex. nylock

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. Ferry hd. cap.

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

10

R26136

STARTER MOTOR

STARTER ASSY. - 24 volt (See Figures 56 & 58)

1шт.

11

A27933

GASKET

- starting, Serial Range: motor-block

1шт.

12

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

13

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

14

92-8

LOCK WASHER,1/2"

3шт.

20

321-3709

DECAL

- starter warning

1шт.
