(04) - 336BDT TURBOCHARGED ENGINES, MANIFOLDS, 336BD NATURALLY

Запчасти Case 336B (04) - 336BDT TURBOCHARGED ENGINES, MANIFOLDS, 336BD NATURALLY

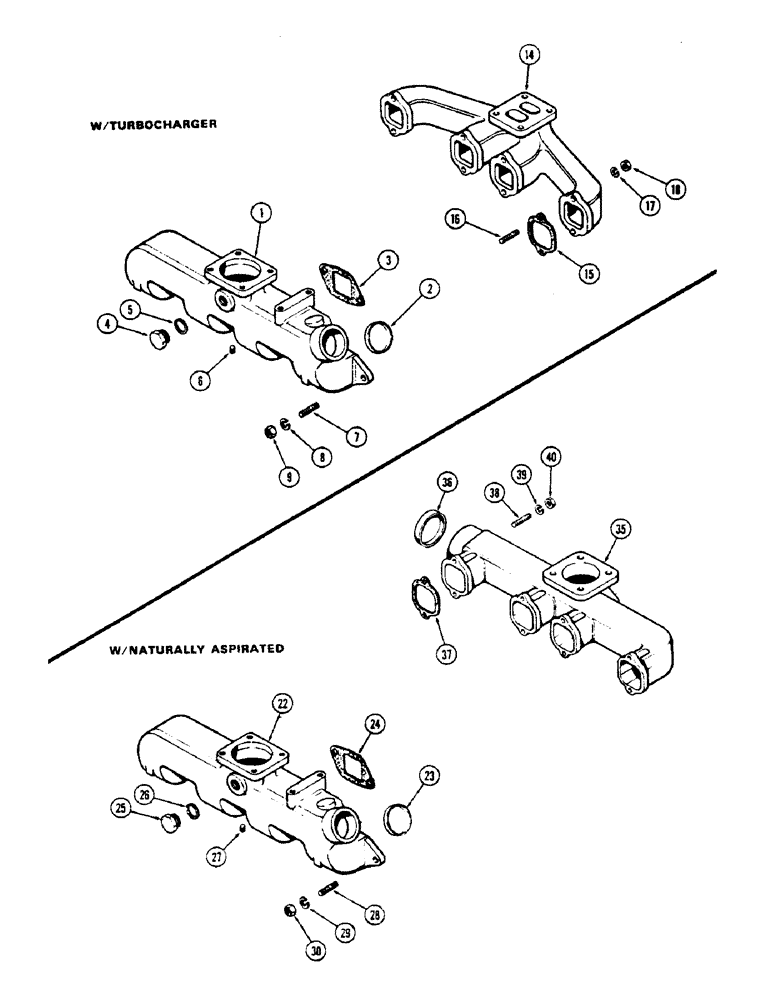

Схема запчастей Case 336B - (04) - 336BDT TURBOCHARGED ENGINES, MANIFOLDS, 336BD NATURALLY
2
5
9
35
37
24
18
40
15
23
1
30
16
17
22
26
6
36
8
7
28
4
25
29
38
3
39
14
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A59225

MANIFOLD

ASSY - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

4шт.

4

A20917

PLUG

- intake manifold

1шт.

5

A20916

MANIFOLD GASKET

GASKET - manifold plug

1шт.

6

221-1101

FITTING,1/8" PT x 1/4"

PLUG - 1/8" hex. sckt. hd. pipe

1шт.

7

A59077

STUD

- 3/8" N.C. x 1-3/4"

8шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

8шт.

9

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex. (Intake manifold)

8шт.

14

A61001

MANIFOLD

- exhaust

1шт.

15

A58895

GASKET

- exhaust manifold

4шт.

16

A59077

STUD

- 3/8" N.C. x 1-3/4"

8шт.

17

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

8шт.

18

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf (Exhaust manifold)

8шт.

22

A59225

MANIFOLD

ASSY - intake, Includes: Ref. 23, 336BD naturally aspirated engines

1шт.

23

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup, 336BD naturally aspirated engines

1шт.

24

A58662

MANIFOLD GASKET

- intake manifold, 336BD naturally aspirated engines

4шт.

25

A20917

PLUG

- intake manifold, 336BD naturally aspirated engines

1шт.

26

A20916

MANIFOLD GASKET

GASKET - manifold plug, 336BD naturally aspirated engines

1шт.

27

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" hex. sckt. hd. pipe, 336BD naturally aspirated engines

1шт.

28

A59077

STUD

- 3/8" N.C. x 1-3/4", 336BD naturally aspirated engines

8шт.

29

92-6

LOCK WASHER,3/8"

WASHER - lock, , 336BD naturally aspirated engines 3/8"

8шт.

30

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex. (Intake manifold), 336BD naturally aspirated engines

8шт.

35

A62290

MANIFOLD

ASSY - exhaust, Includes: Ref. 36, 336BD naturally aspirated engines

1шт.

36

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cup, 336BD naturally aspirated engines

1шт.

37

A58666

MANIFOLD GASKET

- exhaust manifold, 336BD naturally aspirated engines

4шт.

38

A59077

STUD

- 3/8" N.C. x 1-3/4", 336BD naturally aspirated engines

8шт.

39

92-6

LOCK WASHER,3/8"

WASHER - lock, , 336BD naturally aspirated engines 3/8"

8шт.

40

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf (Exhaust manifold), 336BD naturally aspirated engines

8шт.
