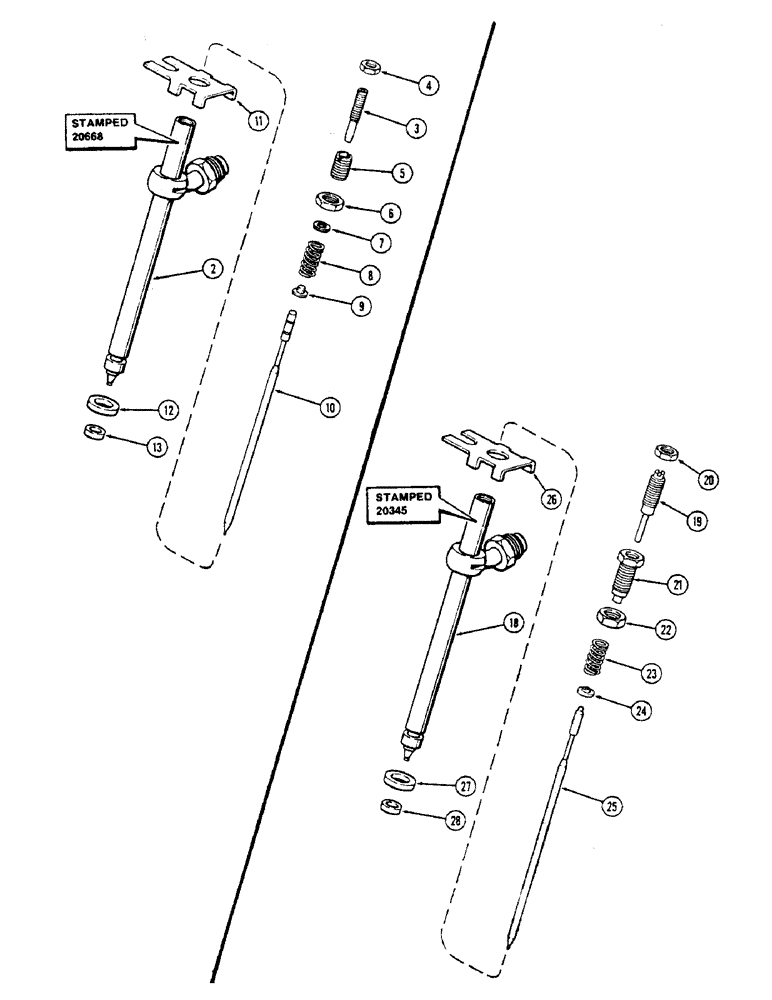

Запчасти Case 336B (46) - A138322 FUEL INJECTION NOZZLE, 336BDT TURBOCHARGED ENGINES

A138322

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's no. 20668 stamped on body) (Color coded red) (Replaces A62809), Includes: Ref. 2 - 13

4шт.

Whenever nozzle is removed from head the seal ref. 13 and 28 and washer ref. 12 and 27 must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

336B - B SERIES

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

NLS

NO LONGER SERVICED

SEAT - pressure spring, upper (Replaces A45291)

1шт.

8

A45290

SPRING

- pressure adjusting (11/16" free length) (Red color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's No. 20345 stamped on body) (w/red color code) (Order A138322), Includes: Ref. 18 - 28

4шт.

Whenever nozzle is removed from head the seal ref. 13 and 28 and washer ref. 12 and 27 must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

336B - B SERIES REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - nozzle, A62809 fuel injection

1шт.

19

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lifting adjusting, A62809 fuel injection nozzle

1шт.

20

A43602

NUT

- lock, lift adjusting screw, A62809 fuel injection nozzle

1шт.

21

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting screw, A62809 fuel injection nozzle

1шт.

22

A42424

LOCK NUT

- lock, pressure adjusting screw, A62809 fuel injection nozzle

1шт.

23

A43601

SPRING

- pressure adjusting (1/2" free length) (Brown stripe color code), A62809 fuel injection nozzle

1шт.

24

A41401

SEAT

- spring, A62809 fuel injection nozzle

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A62809 fuel injection

1шт.

26

A41768

PLATE

- nozzle locating, A62809 fuel injection

1шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, A62809 fuel injection nozzle

1шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A62809 fuel injection nozzle

1шт.
