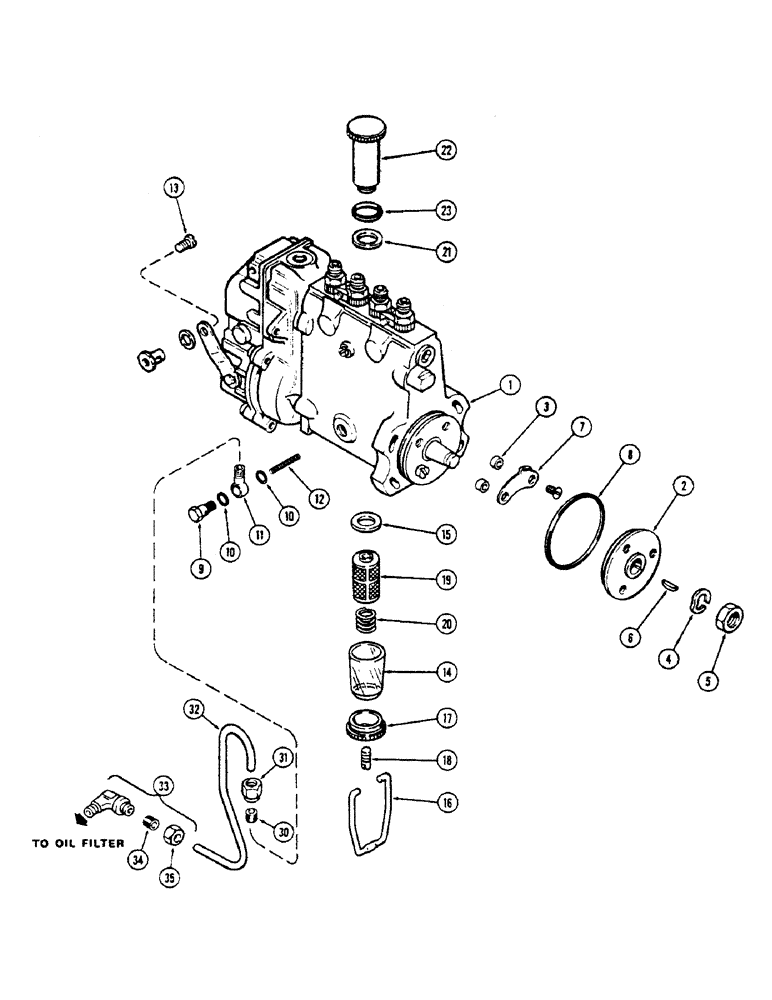

Запчасти Case 336B (44) - A64243 & A62325 FUEL INJECTION PUMPS, 336BD NATURALLY ASPIRATED ENGINE W/LUBE ON ENGINE SIDE OF PUMP

1

A64243

PUMP ASSY. - fuel injection (2200 R.P.M.) (Bosch #PES4A85C420LS2263) (Governor #EP/RSV375-1100A28) (1st used eng. ser. no. 2332394) (Order 1-A138001, 1-A136901 & 1-222-42), Includes: Ref. 2 - 23

1шт.

1

A62325

PUMP

ASSY. - fuel injection (2200 R.P.M.) (Bosch #PES4A85C420LS2263) (Governor #EP/RSV300-1100A) (Used prior to eng. ser. no. 2332394) (Order 1-A138003, 1-A136901 &1-222-42), Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive (With 1/8" keyway)

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut (1/2" I.D.)

1шт.

5

A42313

NUT

- hub retaining (12MM threads)

1шт.

6

A20933

KEY

- hub to shaft (1/8" wide)

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - 3 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- pump stop control cable lock

1шт.

14

A43347

BOWL

- filter (Glass)

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

32

A59226

TUBE

- oil, Serial Range: gallery-pump

1шт.

33

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- 1/4" tube x 1/4" P.T., Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
