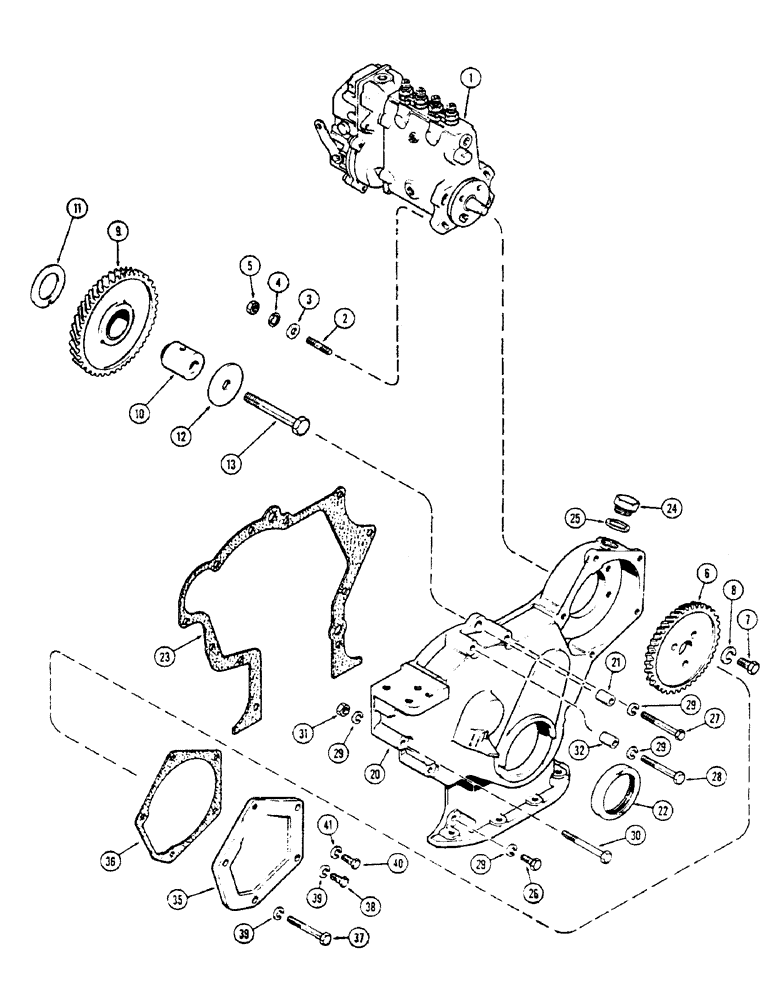

Запчасти Case 336B (36) - FUEL INJECTION PUMP DRIVE, 336BD & 336BDT DIESEL ENGINES

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figure 38 & 40)

1шт.

2

A142092

STUD

- 3/8" N.C. x 1-7/8" (Drilled) (For anti-tamper wire)

1шт.

2

A58689

STUD

- pump mounting, 3/8" N.C. x 1-7/8"

3шт.

3

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" N.C. hex. sltd. (Used w/ A142092 stud)

1шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

6

A58693

GEAR

- injection pump

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

9

A62542

GEAR

ASSY. - idler (w/bushing)

1шт.

10

A58690

SHAFT

- idler gear

1шт.

11

A58691

WASHER

- thrust, idler shaft

1шт.

12

A58692

PLATE

- thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

20

A58609

COVER

ASSY. - timing gear, Includes: Ref. 21

1шт.

21

A58611

PIN

- dowel, cover, timing gear

2шт.

22

A62049

OIL SEAL

- crankshaft front, timing gear cover

1шт.

23

A58612

GASKET

- cover, timing gear

1шт.

24

A21140

PLUG

- timing window, gear cover

1шт.

25

A58613

SEALING WASHER

GASKET - plug, timing gear cover

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex., timing gear cover

2шт.

28

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex., timing gear cover

1шт.

29

92-6

LOCK WASHER,3/8"

WASHER - lock, , timing gear cover 3/8"

9шт.

30

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex., timing gear cover

2шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., timing gear cover

2шт.

32

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

35

A61053

COVER

- fuel pump, timing gear

1шт.

36

A58615

GASKET

- cover, timing gear

1шт.

37

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex., timing gear cover

2шт.

38

A148253

BOLT

- 3/8 x 1-1/2" N.C. hex. (Drilled) (For anti-tamper wire), timing gear cover

2шт.

39

92-6

LOCK WASHER,3/8"

WASHER - lock, , timing gear cover 3/8"

4шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

41

92-5

LOCK WASHER,5/16"

timing gear cover 5/16"

1шт.
