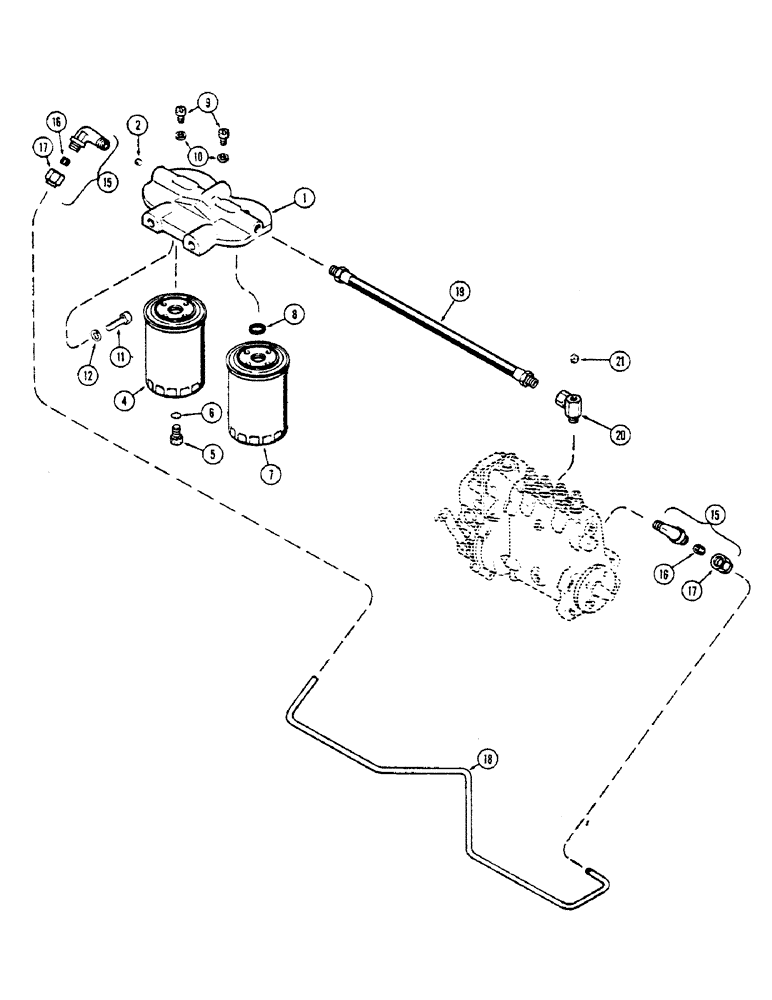

Запчасти Case 336B (34) - FUEL INJECTION FILTER SYSTEM, 336BD & 336BDT DIESEL ENGINES

1

A62339

HEAD

ASSY. - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" P.T. hex. sckt. hd.

1шт.

A41745

KIT

ELEMENT KIT - filter replacement, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 5 and 6

1шт.

5

221-1661

PLUG

- 1/8" P.T. hex. hd. (Metal)

1шт.

5

G49080

PLUG

- (3/8" P.T., 12 pt. hd.) (Plastic)

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk (Used w/G49080 Plug)

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 8

1шт.

8

A42315

GASKET

-, Serial Range: filter-head

1шт.

9

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter head bleed

2шт.

10

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, 3/16 x 5/16 x 1/32" (Replaces A66619)

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., 5/16" tube, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62341

TUBE

- pump to 1st stage filter

1шт.

19

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- 2nd stage, Serial Range: filter-pump

1шт.

20

A20539

FITTING

UNION - in pump

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head)

1шт.
