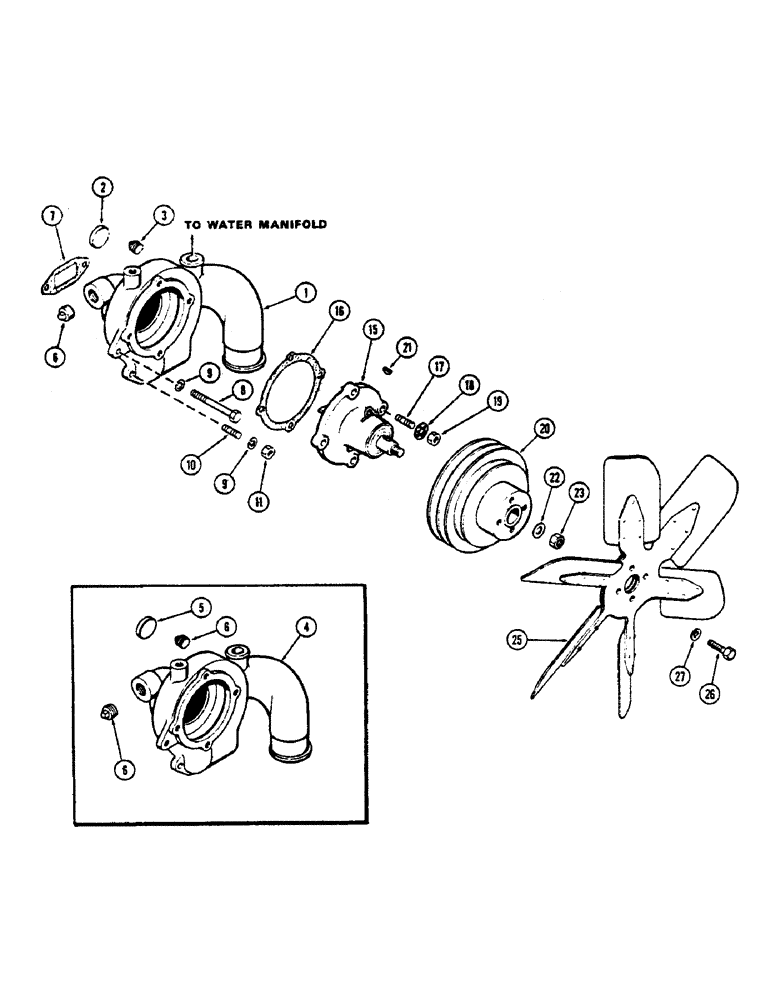

Запчасти Case 336B (03A) - 336BD & 336BDT DIESEL ENGINES, WATER PUMP

1

A138498

HOUSING

BODY ASSY - water pump (Rear of body tapped for 1/2" P.T. plug), Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" sq. hd. pipe

1шт.

4

A59220

BODY

ASSY - water pump (Rear of body tapped for 3/4" P.T. plug), Includes: Ref. 5

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup

1шт.

6

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" sq. hd. pipe

2шт.

7

A58649

GASKET

-, Serial Range: body-block

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

10

G11204

STUD

- 3/8 x 1-7/16" N.C.

2шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

15

A62974

PUMP

ASSY - water

1шт.

16

A58646

GASKET

-, Serial Range: pump-body

1шт.

17

A62234

STUD

- 3/8" N.C. x 1-5/16"

4шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

19

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jame

4шт.

20

A58650

PULLEY

- fan driven

1шт.

21

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

22

A58651

WASHER

- 17/32 x 1-1/16 x 3/32"

1шт.

23

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

25

A15504

FAN

- 20" dia., 6 blade (Pusher type)

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.
