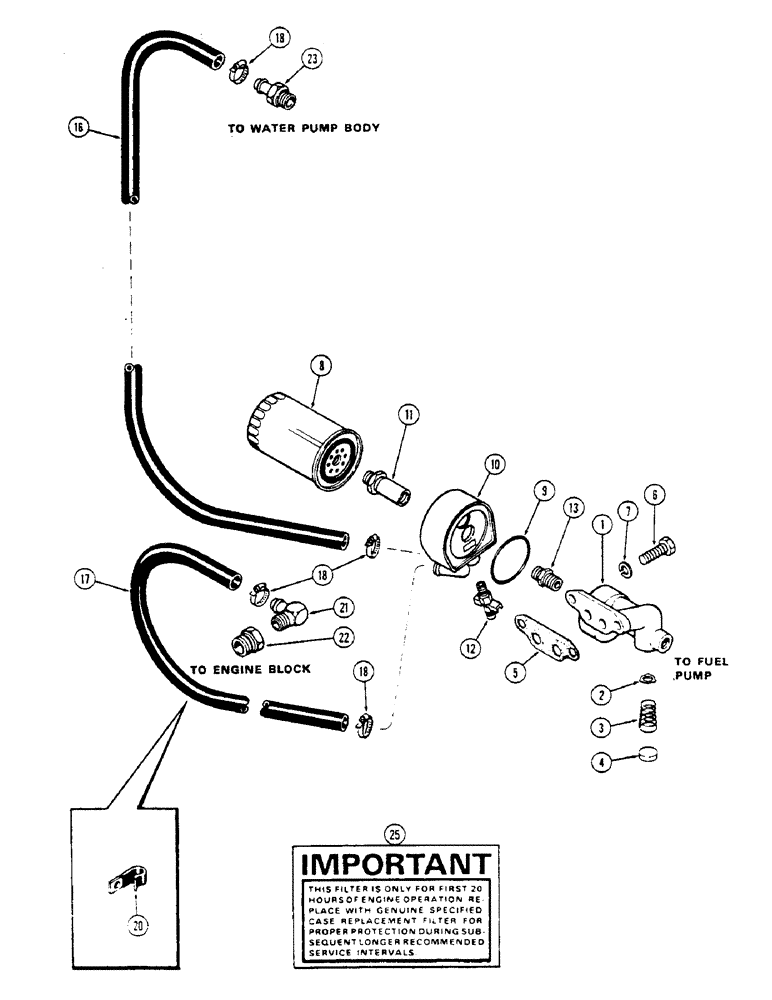

Запчасти Case 336B (27A) - OIL FILTER & COOLER, (336 BD) & (336BDT) DIESEL ENGINES, 1ST USED ENG. S/N 2530834

1

A58752

BASE

ASSY. - oil filter & heat exchanger, Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve, 1" cup

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 2-3/4" N.C. hex

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A75294

ENGINE OIL FILTER

FILTER - oil

1шт.

9

A66410

SEALING RING

- oil, 2-5/8 x 3 x 3/16" sq.

1шт.

10

A66295

COOLER

- oil

1шт.

11

A66992

ADAPTER

-, Serial Range: filter-cooler

1шт.

12

217-107

VALVE

DRAIN COCK - cooler (Discard 1/8" pipe plug in cooler)

1шт.

13

A58757

ADAPTER

-, Serial Range: cooler-base

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water inlet (47" long) (Order A42610)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - water outlet (25" long) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D. x 50" (Cut as req'd)

1шт.

18

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

4шт.

20

A59718

CLAMP

- hose

2шт.

21

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degrees

1шт.

22

221-60

TUBE

REDUCER - 3/4 to 1/2" (In block)

1шт.

23

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 5/8 x 1/2" P.T.

1шт.

25

321-2101

DECAL

- oil filter change

1шт.
