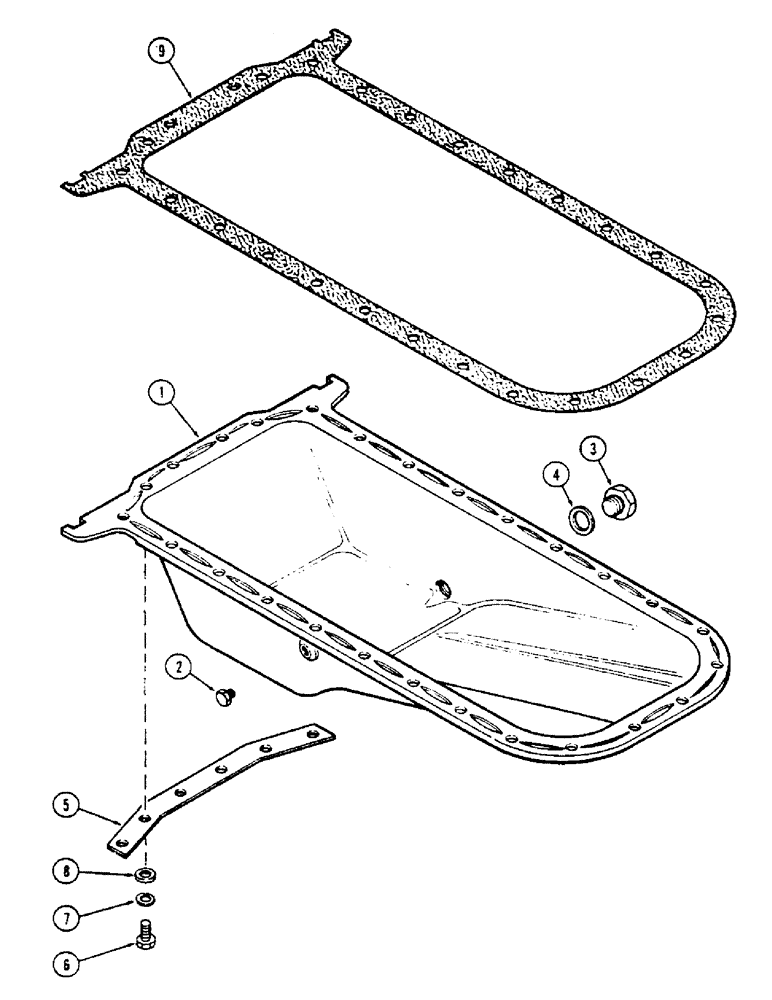

Запчасти Case 336B (26) - OIL PAN, (336BD) & (336BDT) DIESEL ENGINES

1

A62711

PAN

ASSY. - oil (Replaces A59140), Includes: Ref. 2

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" P.T. hex. hd

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug (Replaces A58933)

1шт.

5

A58932

STRAP

- reinforcing

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

24шт.

6

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. hex, Sems

2шт.

7

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

24шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

24шт.

9

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 30)

1шт.
