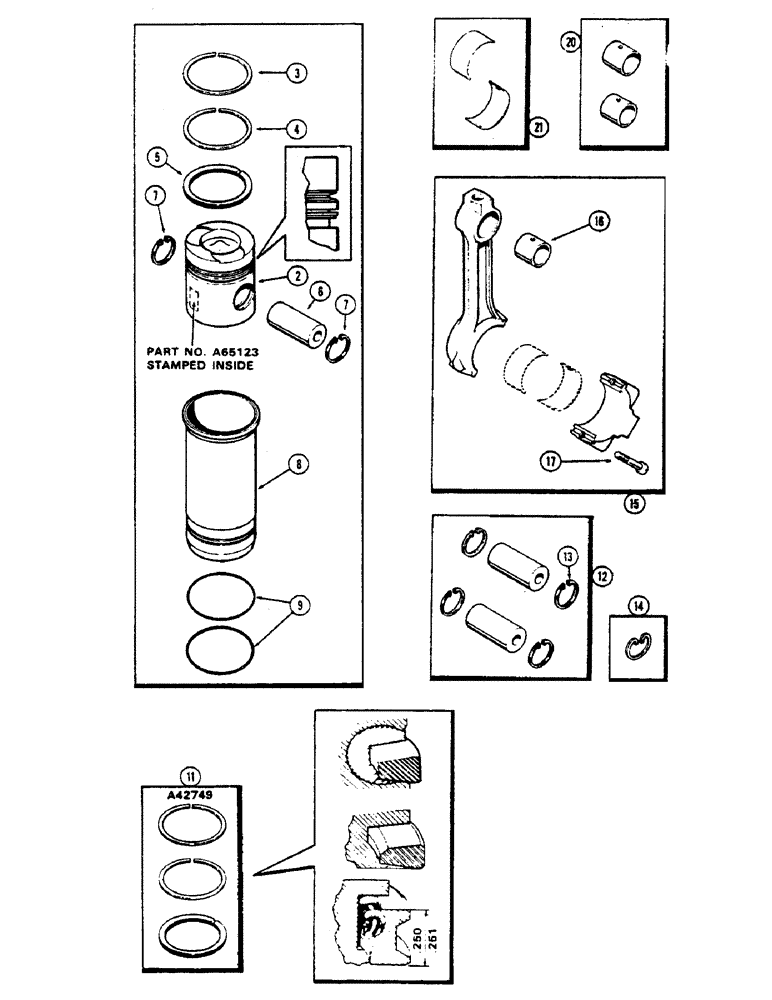

Запчасти Case 336B (23A) - PISTON ASSEMBLY & CONNECTING RODS, 336BD NATURALLY ASPIRATED ENGINES

A46025

PISTON

& SLEEVE KIT - (Set of 2) (Repl. A42751 & A43115), Includes: Ref. 2 - 9

2шт.

2

A65123

PISTON

- cylinder, 4-5/8" bore (Replaces A61848) (A65123 stamped inside piston skirt)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 34)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 34)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order ref. 34)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin, replaces A58585 1.812", Int, #181

4шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner) (Replaces A58570)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

A42750

RING

KIT - piston re-ring (Set of 4), Includes: Ref. 11

1шт.

11

A42749

RING

KIT - piston re-ring (Set of 1)

4шт.

12

A44574

PIN

KIT - w/retaining rings (Set of 2) (Replaces A41750), Includes: Ref. 13

2шт.

13

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , replaces A58585 (see ref 14) 1.812", Int, #181

2шт.

14

A58585

RING, SNAP

RING - retaining, piston pin (Order A44249)

8шт.

15

A65032

ROD

ASSY. - connecting (Replaces A58578), Includes: Ref. 16 and 17

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

17

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - conn. rod brg. cap (Replaces A62184)

2шт.

20

A41756

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A41758

BEARING LINER

INSERT ASSY. - conn. rod bearing (Std.)

4шт.

21

A41899

BEARING LINER

INSERT ASSY. - conn. rod bearing (-.002")

4шт.

21

A41900

BEARING LINER

INSERT ASSY. - conn. rod bearing (-.010")

4шт.

21

A41901

BEARING LINER

INSERT ASSY. - conn. rod bearing (-.020")

4шт.

21

A41902

BEARING LINER

INSERT ASSY. - conn. rod bearing (-.030")

4шт.
