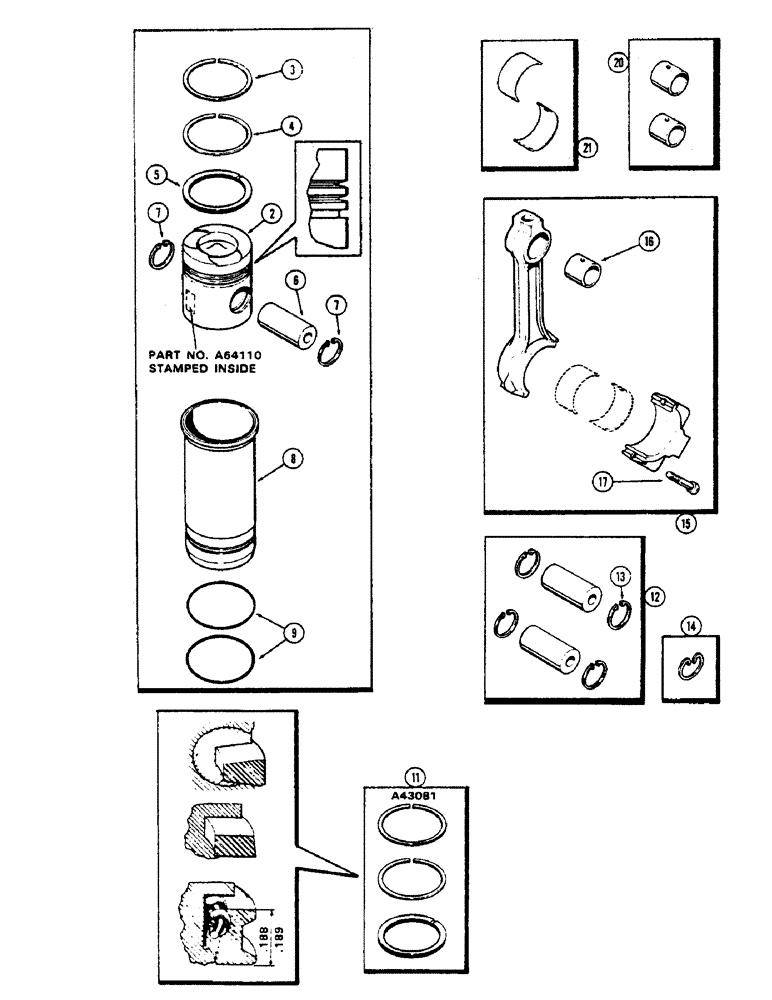

Запчасти Case 336B (22) - PISTON ASSEMBLY & CONNECTING RODS, 336BDT TURBOCHARGED ENGINES

A46024

PISTON

& SLEEVE KIT - (Set of 2) (Replaces A43080), Includes: Ref. 2 - 9

2шт.

2

A64110

PISTON

- (A64110 stamped on inside of piston skirt)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin, replaces A58585 1.812", Int, #181

4шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner) (Replaces A58570)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

A43117

RING

SET - piston re-ring (Set of 4), Includes: Ref. 11

1шт.

11

A43081

RING

SET - piston re-ring (Set of 1)

4шт.

12

A44574

PIN

KIT - w/retaining rings (Set of 2) (Replaces A41750), Includes: Ref. 13

2шт.

13

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , replaces A58585 (see ref 14) 1.812", Int, #181

2шт.

14

A58585

RING, SNAP

RING - retaining, piston pin (Order A44249)

8шт.

15

A65032

ROD

ASSY. - connecting (Replaces A58578), Includes: Ref. 16 and 17

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

17

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - conn. rod brg. cap (Replaces A62184)

2шт.

20

A41756

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A41758

BEARING LINER

INSERT ASSY. - conn. rod brg. (Std.)

4шт.

21

A41899

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

21

A41900

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

21

A41901

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020")

4шт.

21

A41902

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.030")

4шт.
