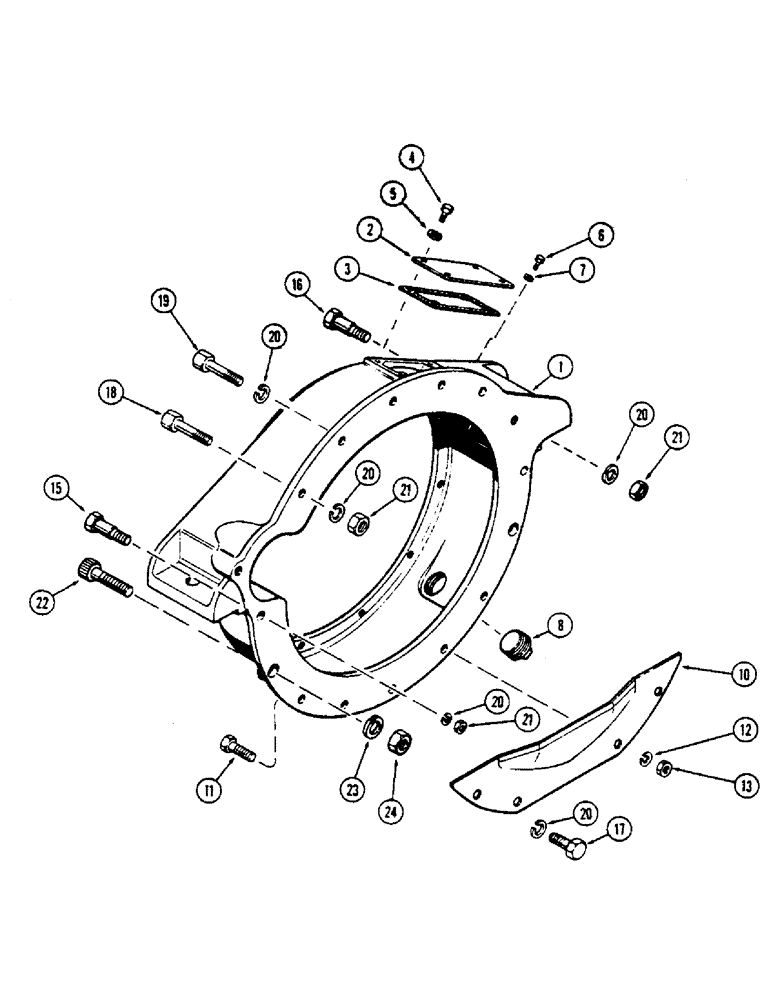

Запчасти Case 336B (20) - FLYWHEEL HOUSING, (336BD) & (336BDT) DIESEL ENGINES

1

A21040

HOUSING

- flywheel

1шт.

2

A22584

COVER

PLATE - hand hole cover

1шт.

3

A22585

GASKET

- plate

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - 1/1/4" sq. hd. pipe

1шт.

10

A58931

GUARD

SHIELD - dust

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

15

A61041

STEP BOLT

BOLT - dowel, 1/2 x 2-7/16" N.C. hex

1шт.

16

A61040

STEP BOLT

BOLT - dowel, 1/2 x 3" N.C. hex

1шт.

17

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1шт.

18

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex

2шт.

19

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

20

92-8

LOCK WASHER,1/2"

8шт.

21

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

22

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4 x 3" N.C. 12 pt

2шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

24

25-1012

NUT,3/4"-10, G5

2шт.
