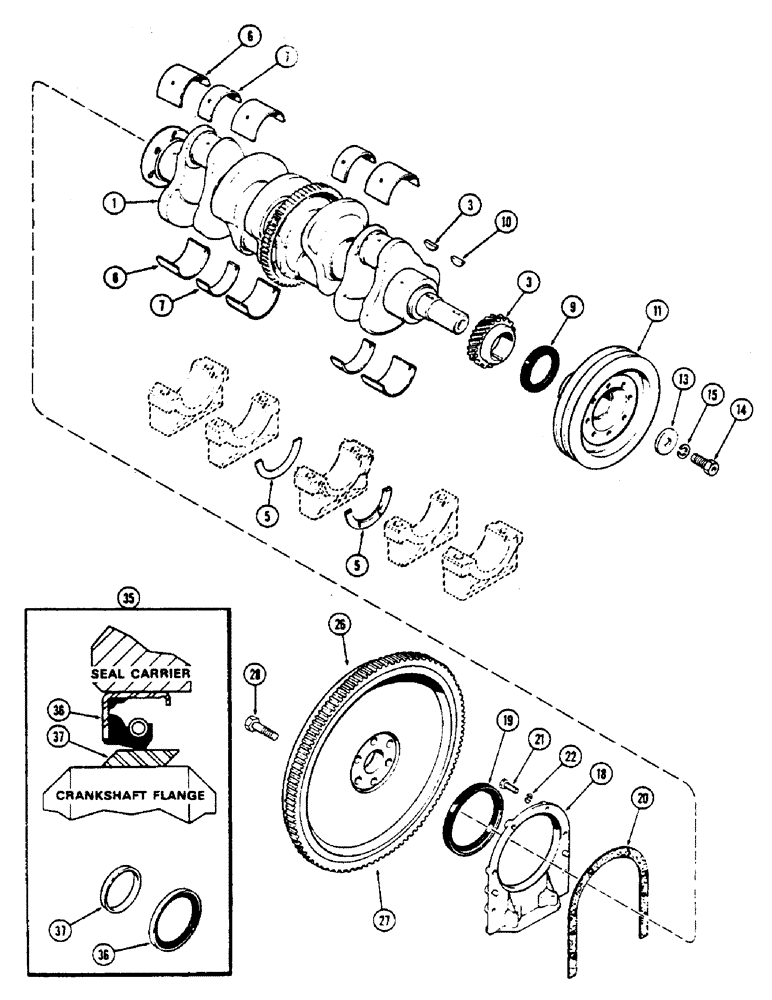

Запчасти Case 336B (19A) - CRANKSHAFT & FLYWHEEL, (336BD) & (336BDT) DIESEL ENGINES

1

A148621

SHAFT

CRANKSHAFT ASSY. - engine (Replaces A64376 & A64473), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

5

A58565

WASHER

- thrust, crankshaft (Std.) (.185")

2шт.

5

A42447

WASHER

- thrust, crankshaft (Oversize) (.191")

2шт.

6

A43090

BEARING LINER

LINER - main bearing, wide (Std.)

3шт.

6

A41907

KIT

LINER - main bearing, wide (-.002")

3шт.

6

A41908

KIT

LINER - main bearing, wide (-.010")

3шт.

6

A41909

BEARING LINER

LINER - main bearing, wide (-.020")

3шт.

6

A41910

JOURNAL

LINER - main bearing, wide (-.030")

3шт.

7

A43089

BEARING LINER

LINER - main bearing, narrow (Std.)

1шт.

7

A41903

JOURNAL

LINER - main bearing, narrow (-.002")

2шт.

7

A41904

KIT

LINER - main bearing, narrow (-.010")

2шт.

7

A41905

LINING

LINER - main bearing, narrow (-.020")

2шт.

7

A41906

JOURNAL

LINER - main bearing, narrow (-.030")

2шт.

9

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 31/64"

1шт.

10

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

11

A61047

PULLEY

- fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

A57457

RETAINER

- crankshaft rear oil seal

1шт.

19

A62050

OIL SEAL

- crankshaft rear, 4-3/4 x 5-3/4 x 1/2" (See rear seal kit, ref. 35)

1шт.

20

A32830

GASKET

- retainer

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

6шт.

26

A59235

FLYWHEEL ASSY., Includes: Ref. 27

1шт.

27

A58778

GEAR

- ring (139 teeth)

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- 5/8 x 1-1/2" N.C. hex

6шт.

35

A43194

KIT

- wear seal, crankshaft rear oil, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kit, 4-3/4 x 4-7/8 x 9/16"

1шт.
