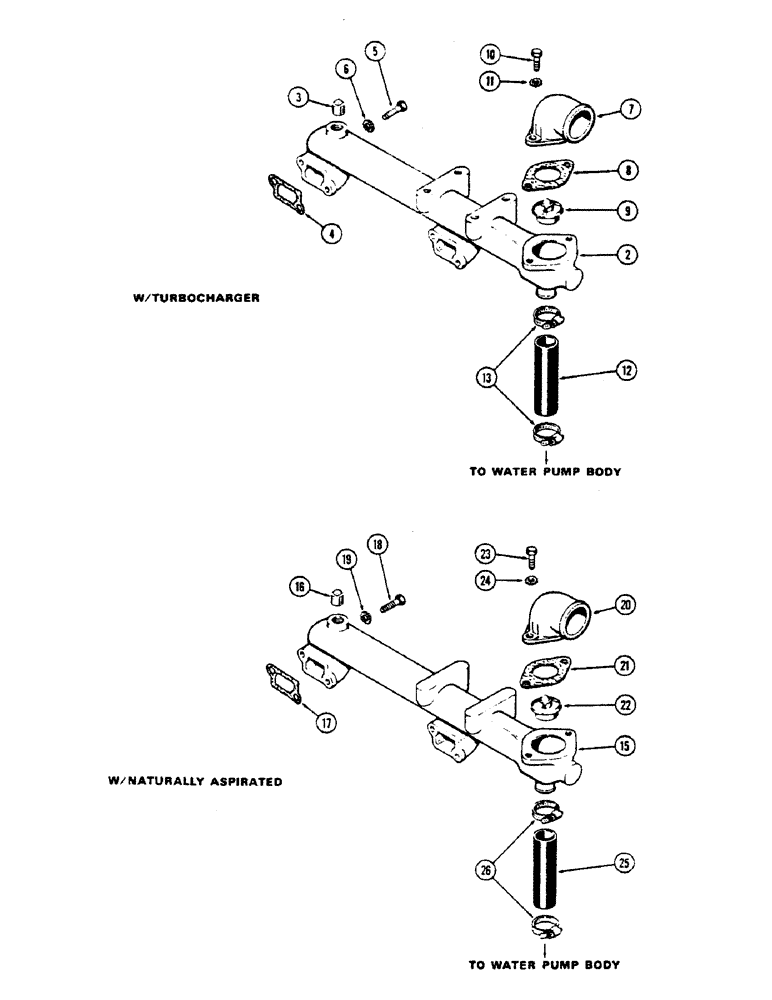

Запчасти Case 336B (02) - 336BDT TURBOCHARGED ENGINES, WATER MANIFOLD & THERMOSTAT

2

A59211

MANIFOLD

- water (W/turbo-charger)

1шт.

3

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

4

A58637

MANIFOLD GASKET

- manifold

2шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" NC hex (Grade 5)

2шт.

6

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

7

A60636

HOUSING

- thermostat

1шт.

8

G46907

GASKET

- thermostat housing

1шт.

9

A57641

THERMOSTAT

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

11

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

12

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- pump by-pass (1-1/4 x 3-5/16")

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

15

A58735

MANIFOLD

- water (w/o turbo-charger), 336BD naturally aspirated engines

1шт.

16

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd., 336BD naturally aspirated engines

1шт.

17

A58637

MANIFOLD GASKET

- manifold, 336BD naturally aspirated engines

2шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex, 336BD naturally aspirated engines

2шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" NC hex (Grade 5), 336BD Naturally aspirated engines

2шт.

19

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, , 336BD Naturally aspirated engines Ext Tooth, 3/8"

4шт.

20

A60636

HOUSING

- thermostat, 336BD naturally aspirated engines

1шт.

21

G46907

GASKET

- thermostat housing, 336BD naturally aspirated engines

1шт.

22

A57641

THERMOSTAT

336BD naturally aspirated engines

1шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

336BD Naturally aspirated engines Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

24

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, , 336BD Naturally aspirated engines Ext Tooth, 3/8"

2шт.

25

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- pump by-pass, 1-1/4 x 3-5/16", 336BD naturally aspirated engines

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4", 336BD naturally aspirated engines

2шт.
