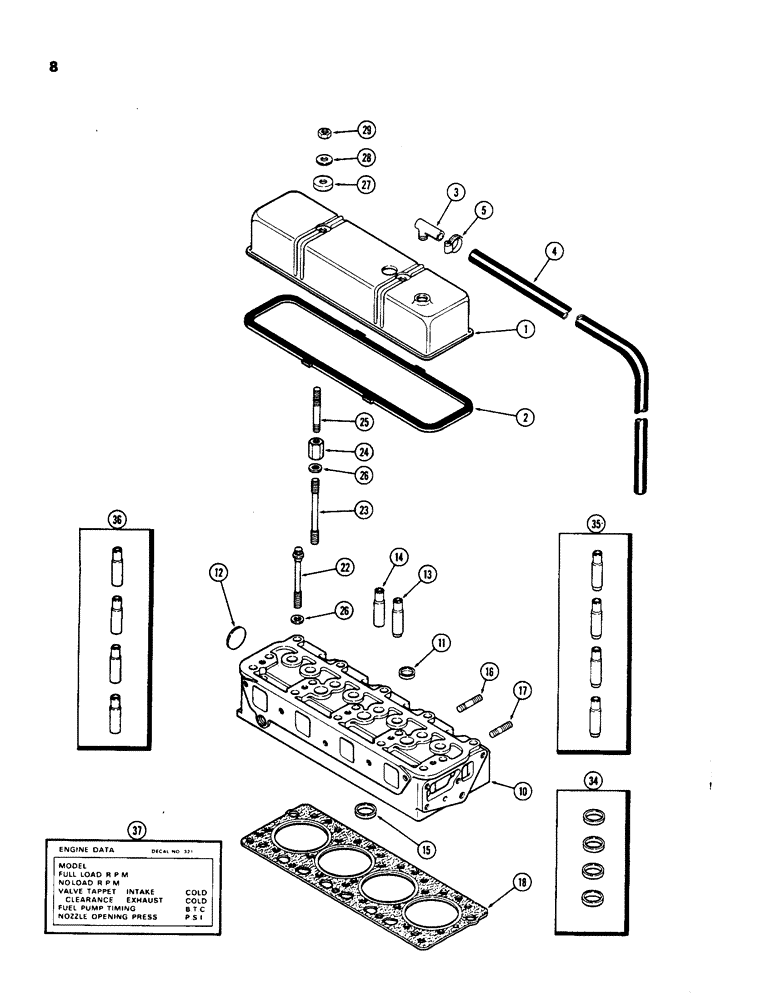

Запчасти Case 207 (08) - CYLINDER HEAD AND COVER, (207) DIESEL ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

3

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

4

A39570

HOSE

HOSE - breather tube (rubber)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose to elbow (9/16" to 1-1/16")

1шт.

10

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder, Includes: Ref. 11 - 17

1шт.

For engines with aluminum manifolds see instruction card 9-75475 attached to this head

1шт.

11

41-1016

PLUG,Cup, 1"

- top (1"cup type)

3шт.

12

A39242

PLUG

- rear (1-3/4" expansion)

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 35) (3-1/8" long)

4шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 36) (3-1/4" long)

4шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 34)

4шт.

16

A39129

STUD

- manifold (3 used this application) (3/8" N.C. x 2-1/16")

6шт.

For engines with aluminum manifolds see instruction card 9-75475 attached to this head

1шт.

17

A29431

STUD

- manifold (2 used this application) (3/8" N.C. x 1-3/4")

4шт.

For engines with aluminum manifolds see instruction card 9-75475 attached to this head

1шт.

18

A39279

GASKET

- cylinder, Serial Range: head-block

1шт.

22

A39047

12 PT SCREW

BOLT - head to block (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

22

A39048

12 PT SCREW

BOLT - head to block (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

22

A39049

12 PT SCREW

BOLT - head to block (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

23

A36902

STUD

- cyl. head (1/2" N.C. x 5-5/8")

2шт.

24

A51114

NUT

- head studs (1/2" N.C. & 3/8" N.C.)

2шт.

25

A51271

STUD

- cyl. head cover (3/8" N.C. x 3-3/4")

2шт.

26

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

27

G46867

GROMMET

- cover (rubber)

2шт.

28

G49400

WASHER

- cover nut (3/8 x 1-1/8 x 1/8")

2шт.

29

25-106

NUT,3/8"-16, G5

- cover (3/8" N.C. hex.)

2шт.

34

A43048

KIT

INSERT KIT - exhaust valve seat (Set of 4)

1шт.

35

G11946

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

36

G11945

GUIDE

KIT - intake valve (Set of 4)

1шт.

37

321-2943

DECAL - engine data (on cover)

1шт.
