1

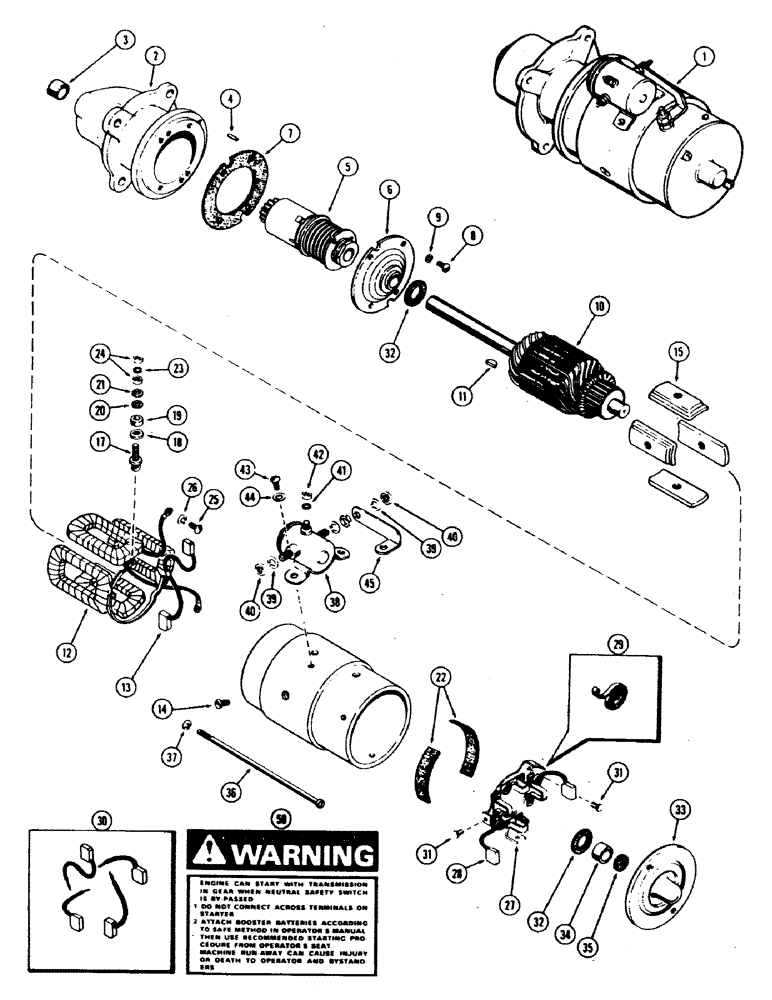

A36584
STARTING MOTOR
STARTER ASSY - engine (Eltra no. MDU-7104A)
1шт.
1
104223A1R
REMAN-STARTER
Remanufactured STARTER 12 volt Presto Inertia
1шт.
1
104223A1C
CORE-STARTER
Return Part Number, STARTER 12 volt Presto Inertia
1шт.
2
A25610
HOUSING
HOUSING ASSY - drive end
1шт.
3
A25611
BEARING
BEARING - armature shaft
1шт.
4
NSS
NOT SOLD SEPARAT
PIN - housing, locating
1шт.
5
A40272
DRIVE
DRIVE ASSY - starter
1шт.
6
A43257
BUSHING
PLATE ASSY - intermediate bearing
1шт.
7
G46910
GASKET
GASKET - intermediate bearing plate
1шт.
8
173-221
SCREW,Sl Rnd Hd, #10 - 32 x 7/16"
SCREW - (#10-32 x 7/16" round head)
4шт.
9
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
10
A25607
ARMATURE
SPARE PART ARMATURE - starter
1шт.
11
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
WOODRUFF KEY, #6, 5/32" x 5/8", HT
1шт.
12
A25604
PACKAGE
COIL ASSY - field
1шт.
13
NSS
NOT SOLD SEPARAT
BRUSH - (Order A25603) (See item 30)
2шт.
14
NSS
NOT SOLD SEPARAT
SCREW - pole shoes
4шт.
15
NSS
NOT SOLD SEPARAT
SHOE - pole
4шт.
A40278
KIT
TERMINAL KIT - field
1шт.
17
NSS
NOT SOLD SEPARAT
STUD - field terminal
1шт.
18
NSS
NOT SOLD SEPARAT
WASHER - insulating, inner
1шт.
19
NSS
NOT SOLD SEPARAT
BUSHING - insulating, (In housing)
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - insulating, outer
1шт.
21
NSS
NOT SOLD SEPARAT
WASHER - plain, terminal stud
1шт.
22
NSS
NOT SOLD SEPARAT
INSULATION - field coil
2шт.
23
92-5
LOCK WASHER,5/16"
LOCK WASHER, 5/16"
1шт.
24
9635082
NUT,5/16" - 18, Gr 5
NUT, 5/16"-18, G5
2шт.
25
173-74
SCREW,Sl Rnd Hd, #8 - 32 x 5/16"
SCREW - (#8-32 x 5/16" round head)
1шт.
26
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
Washer, Lock, #8
1шт.
27
A25612
PLATE
PLATE ASSY. - brush carrier
1шт.
28
NSS
NOT SOLD SEPARAT
BRUSH - (Order A25603) (See item 30)
2шт.
29
A40275
SPRING
SPRING SET - brush (Set of 4)
1шт.
30
A25603
BRUSH SET
BRUSH SET - (Set of 4)
1шт.
31
NSS
NOT SOLD SEPARAT
RIVET - brush plate
3шт.
A40277
KIT
THRUST WASHER KIT - (Use washers as required)
1шт.
32
NSS
NOT SOLD SEPARAT
WASHER - 1/32" (0.794MM)
4шт.
32
NSS
NOT SOLD SEPARAT
WASHER - 3/64" (1.191MM)
2шт.
32
NSS
NOT SOLD SEPARAT
WASHER - 5/64" (1.984MM)
2шт.
33
A40274
HEAD
HEAD ASSY. - commentator
1шт.
34
NSS
NOT SOLD SEPARAT
BUSHING - armature shaft
1шт.
35
NSS
NOT SOLD SEPARAT
FELT - oiler
1шт.
36
A25601
SCREW
BOLT - thru
2шт.
37
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
38
A40795
SOLENOID
SOLENOID ASSY - starter
1шт.
39
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
3шт.
40
129-122
NUT,5/16"-24, G5
NUT, 5/16"-24, G5
3шт.
41
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
1шт.
42
129-37
NUT,#10-32
NUT, #10-32
1шт.
43
174-93
SCREW,Sl Rnd Hd, #10 - 32 x 1/4"
SCREW - solenoid (#10-32 x 1/4" round head)
2шт.
44
193-26
LOCK WASHER,Int Tooth, #10
WASHER, LOCK, Int Tooth, #10
2шт.
45
G46297
CONNECTOR, ELEC
CONNECTOR CONNECTOR -, Serial Range: solenoid-field
1шт.
50
321-3709
DECAL
DECAL - danger, starter
1шт.
