(27.100.010[02]) - REAR SUSPENSION - 4-LINK, MODEL YEAR 2012

Запчасти Case IH SCOUT XL (27.100.010[02]) - REAR SUSPENSION - 4-LINK, MODEL YEAR 2012 (27) - REAR AXLE SYSTEM

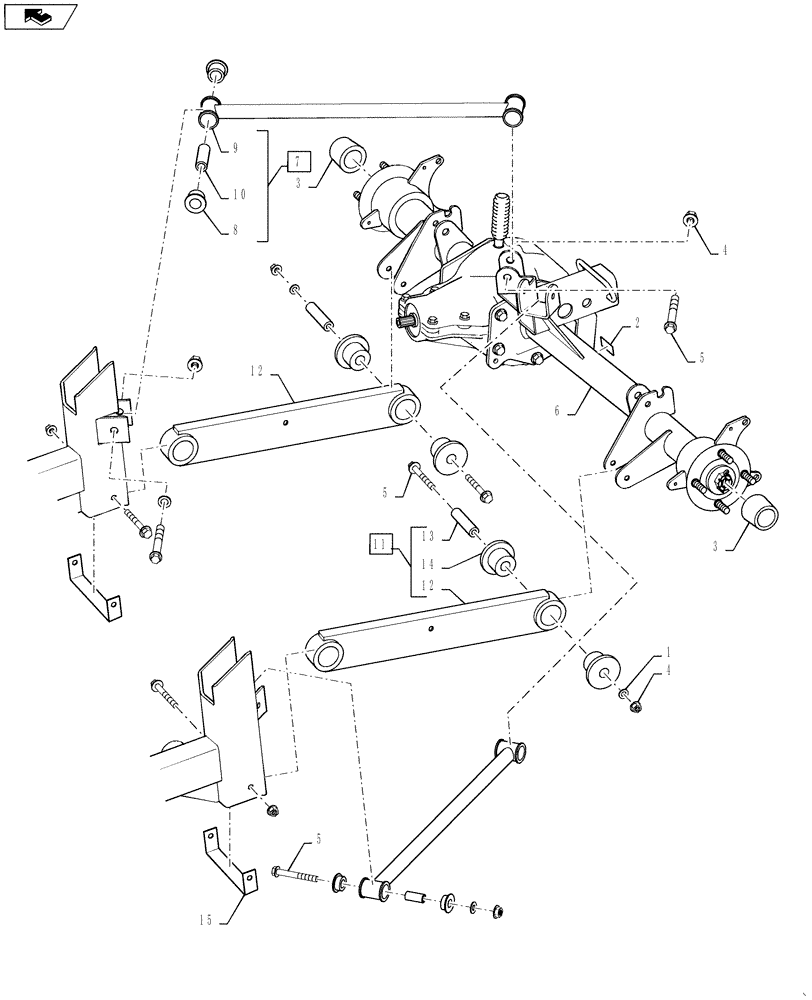

Схема запчастей Case IH SCOUT XL - (27.100.010[02]) - REAR SUSPENSION - 4-LINK, MODEL YEAR 2012 (27) - REAR AXLE SYSTEM
13
12
6
5
home
14
10
12
2
11
8
15
5
3
7
5
9
1
4
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC96741046

WASHER

M10

6шт.

2

CLC1011553

DECAL

Trailer Hitch

1шт.

3

CLC102274101

CAP

Center

2шт.

4

CLC102670701

NUT

M10 x 1.5 Nylon

8шт.

5

CLC103147001

FLANGE BOLT

M10 x 1.5 x 80

8шт.

6

CLC103843901

REAR AXLE

4-Link

1шт.

7

CLC103860301

LINK

Lateral Link, 4-Link, Inc. 8-10

2шт.

8

CLC102408401

BUSHING

A-Arm

4шт.

9

CLC103843801

LINK

Lateral

1шт.

10

CLC103845501

SLEEVE

Inner, 4-Link

2шт.

11

CLC103860401

ARM

Trailing Link, 4-Link, Inc. 12-14

2шт.

12

CLC103843701

ARM

Trailing

1шт.

13

CLC103845501

SLEEVE

Inner, 4-Link

2шт.

14

CLC103886201

BUSHING

Poly, 4-Link

4шт.

15

CLC103923001

CLIP

Trail Link

4шт.
