Запчасти Case IH SCOUT XL (25.122.01) - CV BOOT REPAIR KITS (25) - FRONT AXLE SYSTEM

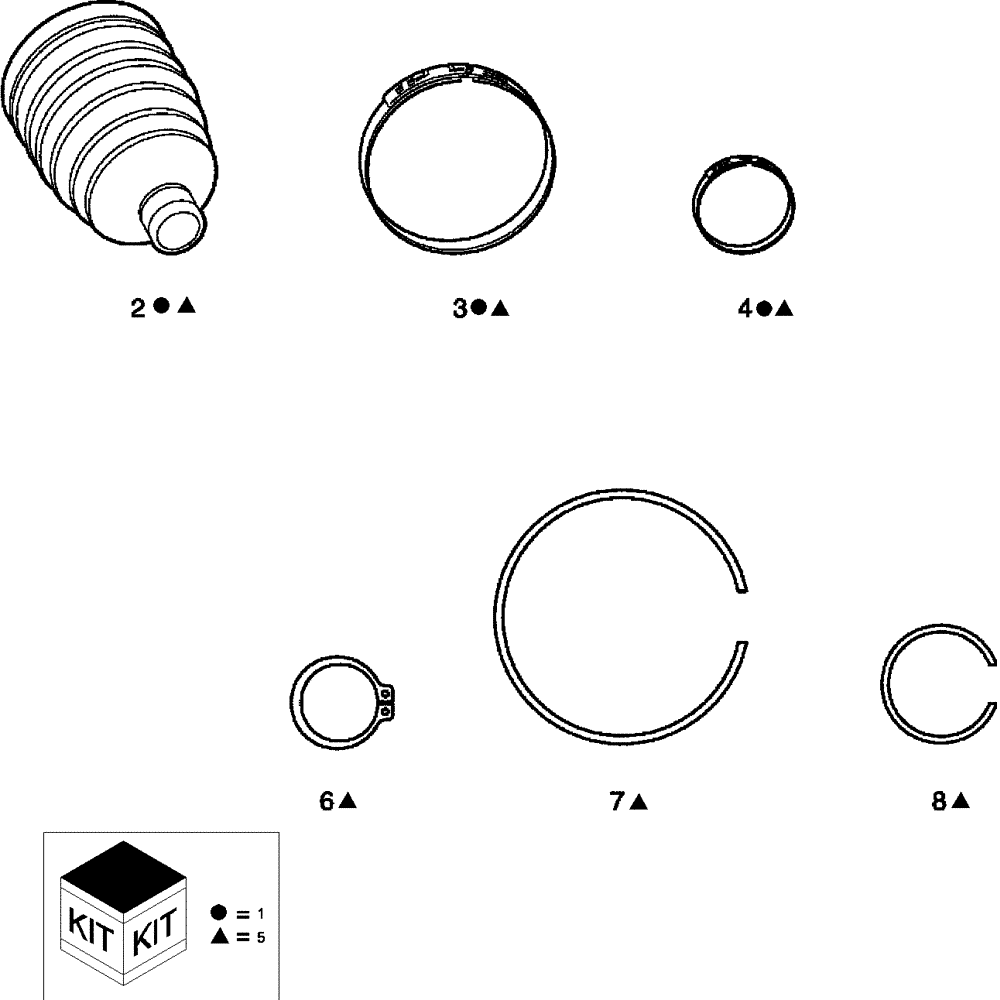

Схема запчастей Case IH SCOUT XL - (25.122.01) - CV BOOT REPAIR KITS (25) - FRONT AXLE SYSTEM
7
5
1
1
1
5
5
5
2
5
6
8
1
5
3
5
5
1
4

Артикул

Название

Примечание

Количество

1

CLCAM11807

KIT

Half Shaft Outer Boot, Inc. 2 - 4

1шт.

1

CLCAM11808

KIT

Half Shaft Inner Boot, Inc. 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

BOOT,Half Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP, Boot, Large

1шт.

4

NSS

NOT SOLD SEPARAT

CLAMP, Boot, Small

1шт.

5

CLCAM1291601

HALF SHAFT

Half Shaft Outer Boot, Inc. 2-4, 6-8

1шт.

5

CLCAM1241301

KIT

Half Shaft Inner Boot, Inc. 2-4, 6-8

1шт.

6

NSS

NOT SOLD SEPARAT

SNAP RING, External

1шт.

7

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP, Retaining Ring

1шт.

Выбрано товаров: 10
