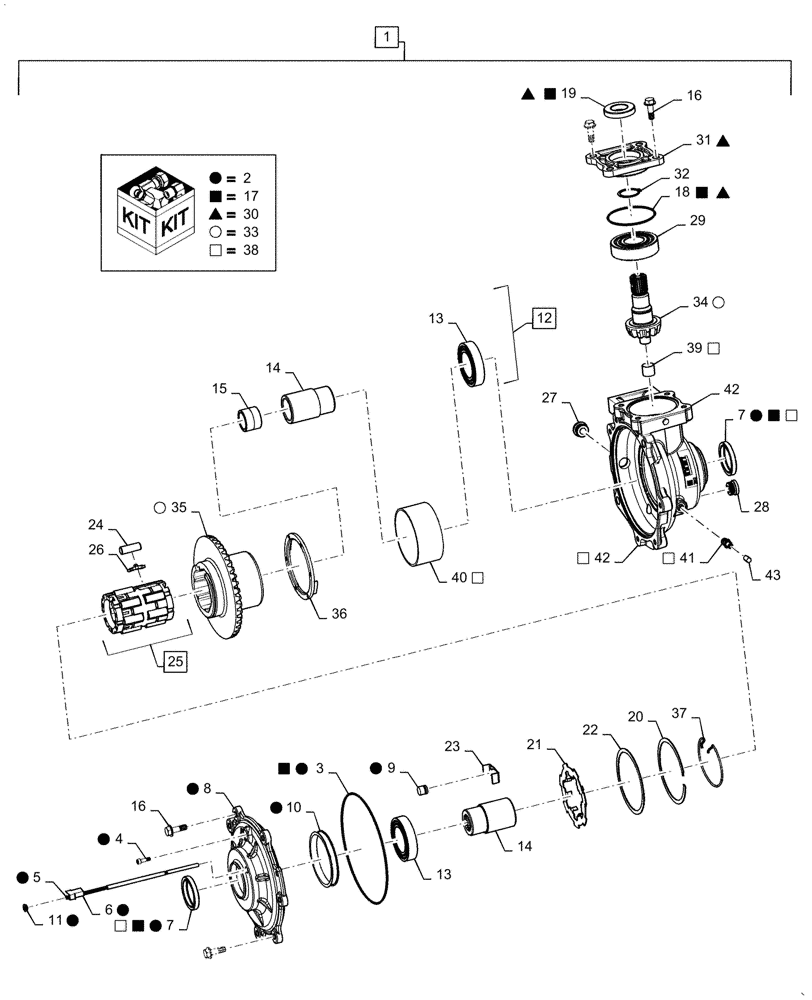

Запчасти Case IH SCOUT XL (21.184.02[03]) - FRONT DIFFERENTIAL (AFTER APR 4 2016) (21) - TRANSMISSION

1

CLC104025601

DIFFERENTIAL

Assy, Incl 2 - 43

1шт.

2

CLC104026201

Output, Incl 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 1, 2, 17

1шт.

4

CLC102439001

SET SCREW

#10 - 24 x 5/8" L

1шт.

5

NSS

NOT SOLD SEPARAT

Mate - N - Lock Pin, Incl in 1, 2

2шт.

6

NSS

NOT SOLD SEPARAT

Mate - N - Lock Housing, Incl in 1, 2

1шт.

7

NSS

NOT SOLD SEPARAT

Oil Seal, 40mm ID x 52mm OD x 7mm Thk, Incl in 1, 2, 17

2шт.

8

NSS

NOT SOLD SEPARAT

Cover Plate, Incl in 1, 2

1шт.

9

CLC102439101

BUTTON

Thrust, Assy

1шт.

10

NSS

NOT SOLD SEPARAT

Coil, Incl in 1, 2

1шт.

11

NSS

NOT SOLD SEPARAT

Grommet, Incl in 1, 2

1шт.

12

CLC103898601

HUB

Output, Assy, Incl 13 - 15

1шт.

13

CLC104026301

Differential

1шт.

Contains 2 Seals

1шт.

14

NSS

NOT SOLD SEPARAT

Output Hub / Race, Incl in 1, 12

2шт.

15

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1, 12

1шт.

16

CLC102438501

KIT

Front Differential Bolt

1шт.

Contains 11 Bolts

1шт.

17

CLC102438601

KIT

Repair, Incl 3, 7, 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 1, 17

1шт.

19

NSS

NOT SOLD SEPARAT

Oil Seal, 25mm ID x 47mm OD x 8mm Thk, Incl in 1, 17

1шт.

20

CLC102438701

RING

Retaining

1шт.

21

CLC102438801

PLATE

Armature, Notched

1шт.

22

CLC102438901

PLATE

Armature, Shim

1шт.

23

CLC102439201

PLATE

Thrust

1шт.

24

CLC102439801

KIT

Roll Cage

14шт.

25

CLC103898801

CAGE

Roll, Assy, Incl 24, 26

1шт.

26

NSS

NOT SOLD SEPARAT

H - Clip Spring, Incl in 1, 25

14шт.

27

CLC102440101

KIT

Drain Plug

1шт.

28

CLC102440301

PLUG

Oil Fill

1шт.

29

CLC102440501

BEARING ASSY

Pinion

1шт.

30

CLC102440201

KIT

Input Cover, Incl 18, 19, 31

1шт.

31

NSS

NOT SOLD SEPARAT

Input Cover, Incl in 1, 30

1шт.

32

CLC103898901

RING

Retaining, Input Shaft

1шт.

33

CLC104026401

Pinion Gear, Incl 34, 35

1шт.

34

NSS

NOT SOLD SEPARAT

Pinion Gear, Incl in 1, 33

1шт.

35

NSS

NOT SOLD SEPARAT

Ring Gear, Clutch Housing, Incl in 1, 33

1шт.

36

CLC104026501

Front Differenital Ring Gear

1шт.

37

CLC103899201

SPRING

Torsion Return

1шт.

38

CLC104026601

COVER ASSY

Gear Case, Incl 7, 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

Bushing, 15.87mm ID x 17.85mm OD x 15mm Thk Incl in 1, 38

1шт.

40

NSS

NOT SOLD SEPARAT

Bushing, 85mm ID x 90mm OD x 41mm Thk

1шт.

41

NSS

NOT SOLD SEPARAT

Vent Tube, Incl in 1, 38

1шт.

42

NSS

NOT SOLD SEPARAT

Gear Case, Incl in 1, 38

1шт.

43

NSS

NOT SOLD SEPARAT

Cap Plug, Incl in 1

1шт.
