(21.184.02[02]) - FRONT DIFFERENTIAL, INPUT (BEFORE APR 4 2016)

Запчасти Case IH SCOUT XL (21.184.02[02]) - FRONT DIFFERENTIAL, INPUT (BEFORE APR 4 2016) (21) - TRANSMISSION

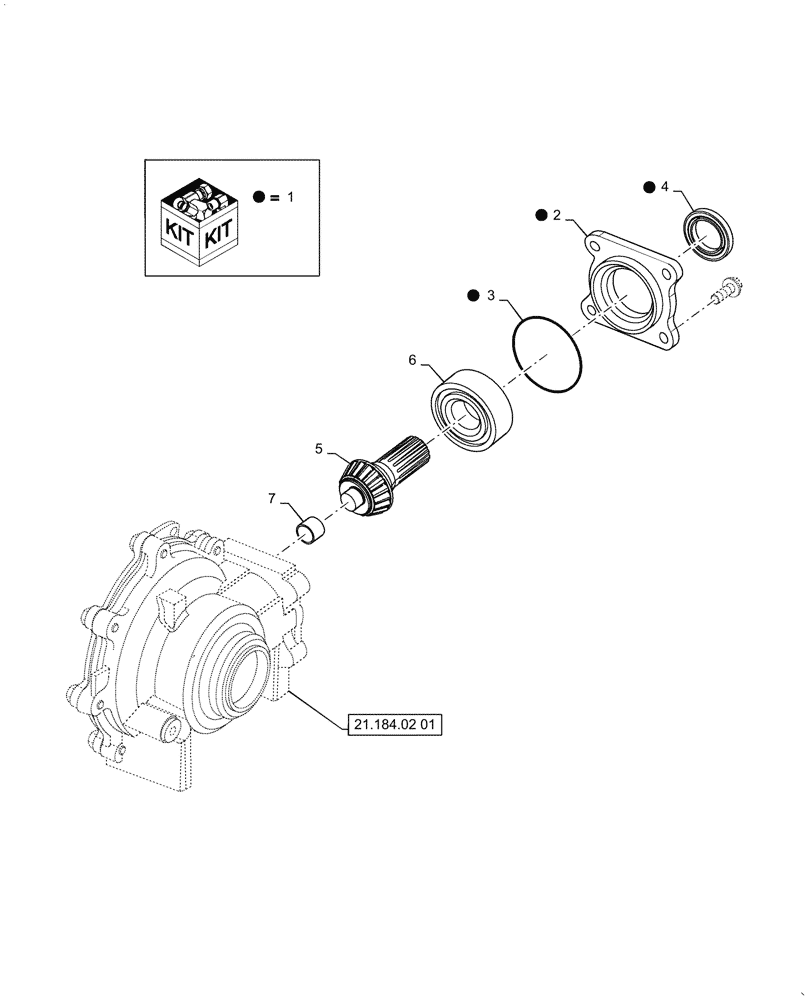

Схема запчастей Case IH SCOUT XL - (21.184.02[02]) - FRONT DIFFERENTIAL, INPUT (BEFORE APR 4 2016) (21) - TRANSMISSION
21.184.02 01
1
2
4
5
1
1
6
3
7
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC102440201

KIT

Input Cover Plate, Incl 2 - 4

1шт.

2

CLC102440601

COVER

Input

1шт.

3

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Oil Seal, Triple Lipped, Incl in 1

1шт.

5

CLC102440401

SHAFT

Pinion

1шт.

6

CLC102440501

BEARING ASSY

Front Differential

1шт.

7

NSS

NOT SOLD SEPARAT

Bushing, 16mm ID x 15mm Thk

1шт.

If Needed, Order Differential CLC102371801

1шт.
