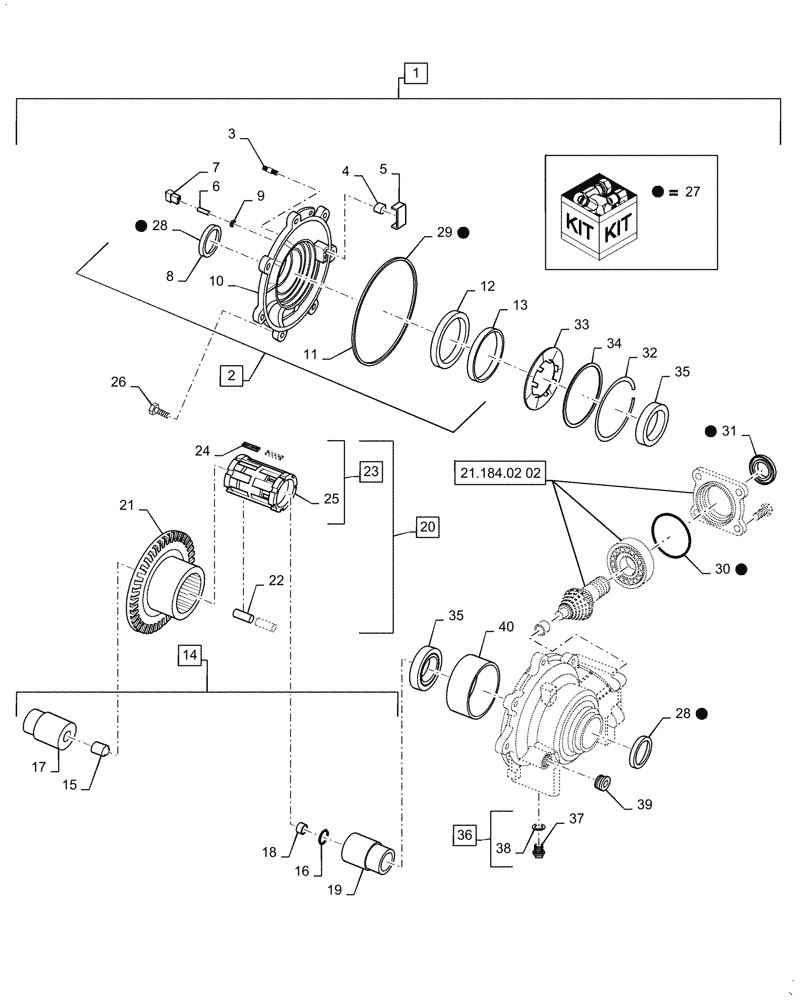

Запчасти Case IH SCOUT XL (21.184.02[01]) - FRONT DIFFERENTIAL, OUTPUT (BEFORE APR 4 2016) (21) - TRANSMISSION

1

CLC102371801

DIFFERENTIAL

Front, Incl 2 - 40

1шт.

2

CLC102438201

KIT

Output Cover Plate, Incl 3 - 13

1шт.

3

CLC102439001

SET SCREW

1шт.

4

CLC102439101

BUTTON

1шт.

5

CLC102439201

PLATE

1шт.

6

NSS

NOT SOLD SEPARAT

Mate - N - Lock Pin, Incl in 1, 2

2шт.

7

NSS

NOT SOLD SEPARAT

Mate - N - Lock Housing, Incl in 1, 2

1шт.

8

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 1, 2

1шт.

9

NSS

NOT SOLD SEPARAT

Grommet, Incl in 1, 2

1шт.

10

NSS

NOT SOLD SEPARAT

Output Cover Plate, Incl in 1, 2

1шт.

11

NSS

NOT SOLD SEPARAT

Cover Plate O - Ring, Incl in 1, 2

1шт.

12

NSS

NOT SOLD SEPARAT

Insert Coil, Incl in 1, 2

1шт.

13

NSS

NOT SOLD SEPARAT

Coil W/ Press Fit Button, Incl in 1, 2

1шт.

14

CLC102438301

KIT

Race Output Hub, Incl 15 - 19

1шт.

15

CLC102439401

STRAIGHT PIN

1шт.

16

CLC102439501

BEARING ASSY

1шт.

17

NSS

NOT SOLD SEPARAT

Output Race Hub, Male, Incl in 1, 14

1шт.

18

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1, 14

1шт.

19

NSS

NOT SOLD SEPARAT

Output Race Hub, Female, Incl in 1, 14

1шт.

20

CLC102438401

KIT

Clutch, Incl 21 - 23

1шт.

21

CLC102439601

CLUTCH

1шт.

22

CLC102439801

KIT

Roller

1шт.

23

CLC102439901

KIT

Roll Cage, Incl 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

H - Clip, Spring Kit

1шт.

25

NSS

NOT SOLD SEPARAT

Roll Cage

1шт.

26

CLC102438501

KIT

Bolt

1шт.

27

CLC102438601

KIT

Seal, Incl 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 1, 27

1шт.

29

NSS

NOT SOLD SEPARAT

Cover Plate O - Ring, Incl in 1, 27

1шт.

30

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 1, 27

1шт.

31

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 1, 27

1шт.

32

CLC102438701

RING

1шт.

33

CLC102438801

PLATE

1шт.

34

CLC102438901

PLATE

Armature

1шт.

35

CLC102439301

BEARING ASSY

12шт.

36

CLC102440101

KIT

Drain Plug, Incl 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

Oil Drain Plug, Incl in 1, 36

1шт.

38

NSS

NOT SOLD SEPARAT

Washer, 3/8" ID x 5/8" OD x 1/16" Thk, Incl in 1, 36

1шт.

39

CLC102440301

PLUG

Oil Fill

1шт.

40

NSS

NOT SOLD SEPARAT

Self Lubricating Bushing, Incl in 1

1шт.
