(21.100.02[09]) - TRANSMISSION, SHIFTING UNIT & BELLCRANK (AFTER MAY 17 2013)

Запчасти Case IH SCOUT XL (21.100.02[09]) - TRANSMISSION, SHIFTING UNIT & BELLCRANK (AFTER MAY 17 2013) (21) - TRANSMISSION

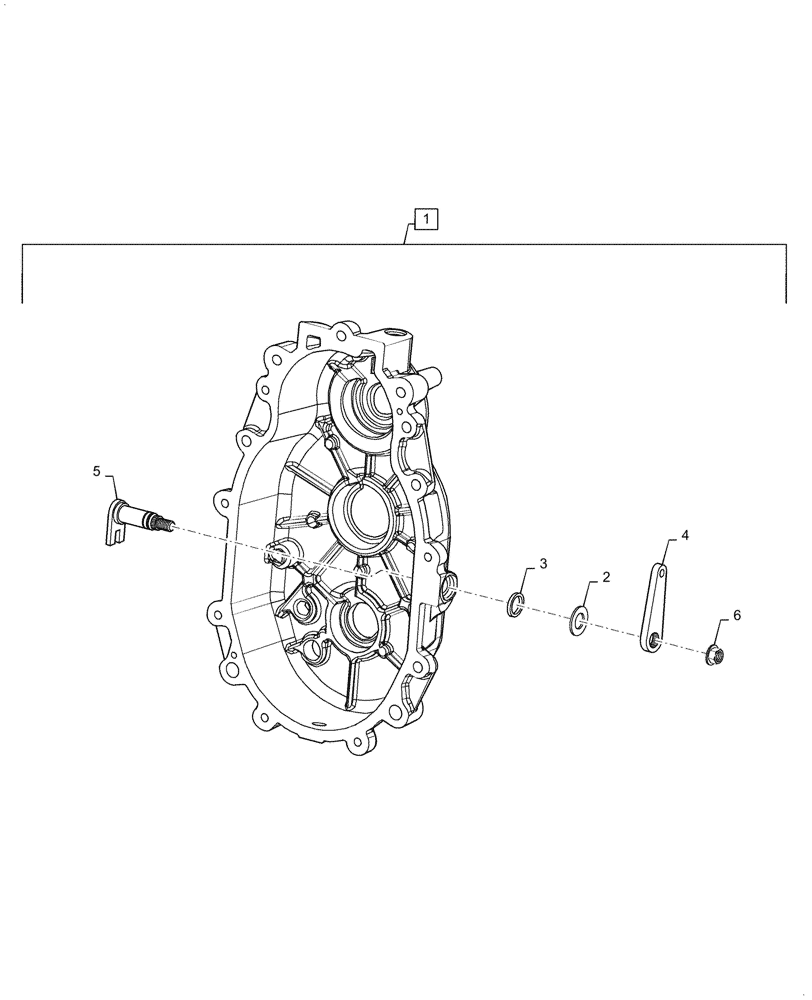

Схема запчастей Case IH SCOUT XL - (21.100.02[09]) - TRANSMISSION, SHIFTING UNIT & BELLCRANK (AFTER MAY 17 2013) (21) - TRANSMISSION
2
1
5
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CLC103969001

TRANSMISSION

Assy, Incl 2 - 6

1шт.

2

CLC102696601

WASHER

37/64" ID x 1-5/64" OD x 1/16" Thk

1шт.

3

CLC102699601

SEAL

Dual Lip, 9/16" ID x 7/8" OD x 3/16" Thk

1шт.

4

CLC103883001

LEVER

Square Hole

1шт.

5

CLC105125901

SHAFT

Shift

1шт.

6

CLC102696001

LOCK NUT

5/16" - 24, Nylon

1шт.
