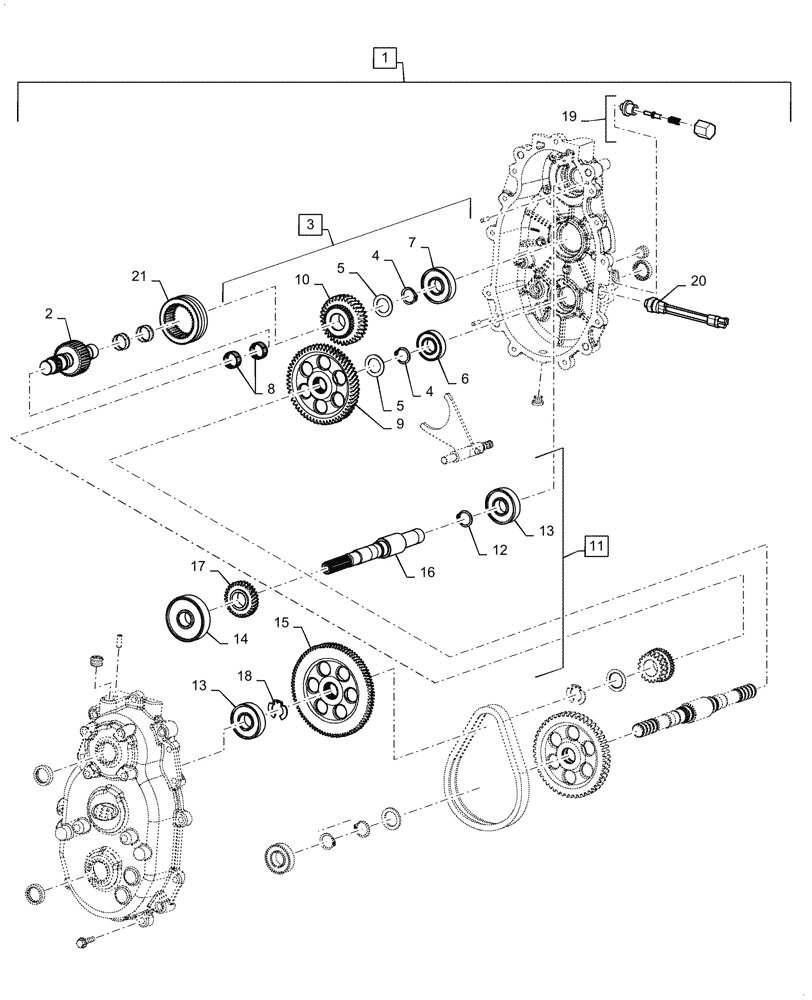

Запчасти Case IH SCOUT XL (21.100.02[08]) - TRANSMISSION (AFTER MAY 17 2013) (21) - TRANSMISSION

1

CLC103969001

TRANSMISSION

Assy, Incl 2 - 21

1шт.

2

CLC102698701

SHAFT

Intermediate

1шт.

3

CLC102764901

REPAIR KIT

Forward Gear, Incl 4 - 10

1шт.

4

CLC102696201

RING

Retaining

2шт.

5

CLC102696501

THRUST WASHER

1 - 5/64" OD x 1/16" Thk

2шт.

6

CLC102696801

BALL BEARING

1шт.

7

CLC102696901

BALL BEARING

1шт.

8

CLC102697101

NEEDLE BEARING

2шт.

9

NSS

NOT SOLD SEPARAT

Gear, Helical, 58T, Incl in 1, 3

1шт.

10

NSS

NOT SOLD SEPARAT

Gear, Helical, 34T, Incl in 1, 3

1шт.

11

CLC103721801

REPAIR KIT

Input Shaft, Incl 12 - 18

1шт.

12

CLC102696201

RING

Retaining

1шт.

13

CLC102696901

BALL BEARING

2шт.

14

CLC102697001

BALL BEARING

1шт.

15

NSS

NOT SOLD SEPARAT

Gear, Helical, 90T, Incl in 1, 11

1шт.

16

NSS

NOT SOLD SEPARAT

Input Shaft, Incl in 1, 11

1шт.

17

NSS

NOT SOLD SEPARAT

Gear, Helical, 31T, Incl in 1, 11

1шт.

18

CLC102699701

RING

Retaining, E - Ring

1шт.

19

CLC105125501

KIT

Detent Repair

1шт.

20

CLC105125601

SWITCH

Indicator, Pollak

1шт.

21

CLC102697501

MOVING CLUTCH DOG

Engagement

1шт.
