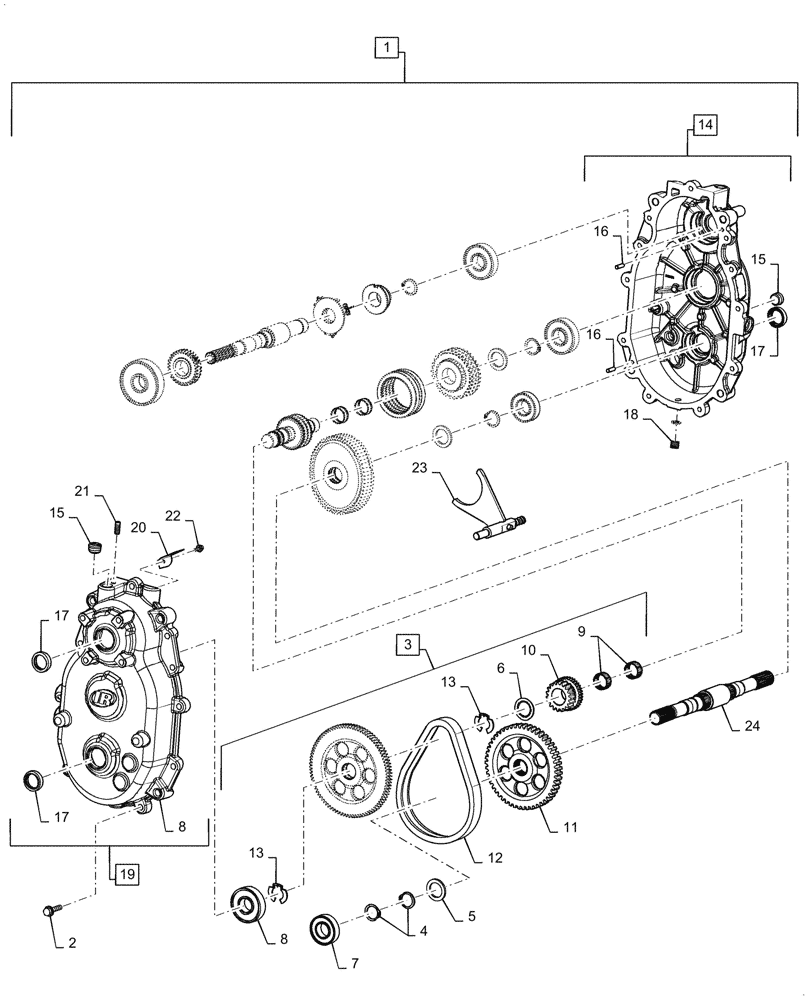

Запчасти Case IH SCOUT XL (21.100.02[07]) - TRANSMISSION (AFTER MAY 17 2013) (21) - TRANSMISSION

1

CLC103969001

TRANSMISSION

AWD, Assy, Incl 2 - 26

1шт.

2

CLC102693301

SCREW

M8 x 35mm L

11шт.

3

CLC102765201

REPAIR KIT

Reverse Gear, Incl 4 - 13

1шт.

4

CLC102696201

RING

Retaining

2шт.

5

CLC102696501

THRUST WASHER

1-5/64" OD x 1/16" Thk

1шт.

6

CLC102696701

WASHER

26.23mm ID x 39.16mm OD x 1.57mm Thk

1шт.

7

CLC102696801

BALL BEARING

1шт.

8

CLC102696901

BALL BEARING

1шт.

9

CLC102697101

NEEDLE BEARING

2шт.

10

NSS

NOT SOLD SEPARAT

Sprocket, 19T, Incl in 1, 3

1шт.

11

NSS

NOT SOLD SEPARAT

Sprocket, 51T, Incl in 1, 3

1шт.

12

NSS

NOT SOLD SEPARAT

Chain, 60mm Pitch

1шт.

13

CLC102699701

RING

Retaining, E - Ring

2шт.

14

CLC105125301

COVER ASSY

Front Gear, ASM, Incl 15 - 18

1шт.

15

CLC102694201

PLUG

1/12" - 14

2шт.

16

CLC102696101

PIN

Dowel, 6mm OD x 20mm L

2шт.

17

CLC102699401

SEAL

Triple, 25mm ID x 35mm OD x 7.8mm Thk

3шт.

18

CLC103250401

PLUG

3/4" - 16

1шт.

19

CLC105125401

COVER ASSY

Rear Gear, ASM, Incl 15, 17, 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Oil Deflector, Incl in 1, 19

1шт.

21

NSS

NOT SOLD SEPARAT

Transmission Vent, Incl in 1, 19

1шт.

22

NSS

NOT SOLD SEPARAT

Tapping Screw, #10 - 24 x 3/8" L, Incl in 1, 19

1шт.

23

CLC105125701

FORK

Transmission

1шт.

24

CLC105125801

SHAFT

Output

1шт.
