Запчасти Case IH SCOUT XL (21.100.02[05]) - TRANSMISSION (SEPT 14 2011 - MAY 17 2013) (21) - TRANSMISSION

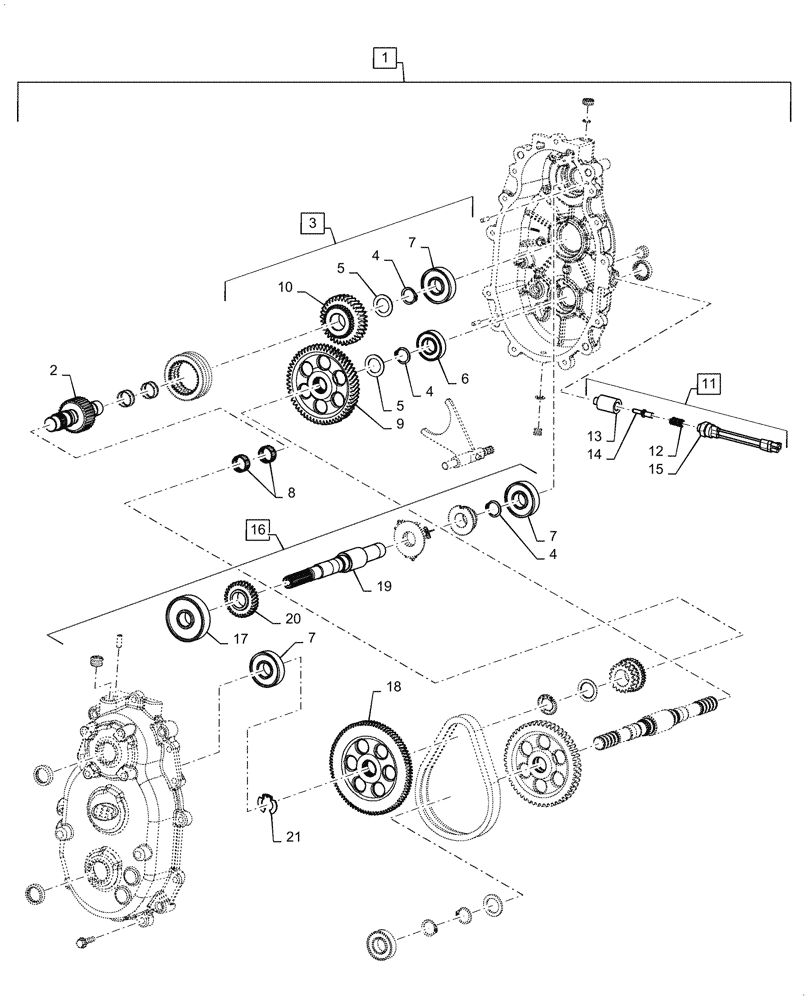

Схема запчастей Case IH SCOUT XL - (21.100.02[05]) - TRANSMISSION (SEPT 14 2011 - MAY 17 2013) (21) - TRANSMISSION
18
15
7
19
7
2
13
4
11
16
17
10
3
5
4
6
4
14
1
20
9
12
7
21
8
5

Артикул

Название

Примечание

Количество

1

CLC103883101

TRANSMISSION

Assy, Incl 2 - 21

1шт.

2

CLC102698701

SHAFT

Intermediate

1шт.

3

CLC102764901

REPAIR KIT

Foward Gear, Incl 4 - 10

1шт.

4

CLC102696201

RING

Retaining

3шт.

5

CLC102696501

THRUST WASHER

1-5/64" OD x 5/8" Thk

2шт.

6

CLC102696801

BALL BEARING

1шт.

7

CLC102696901

BALL BEARING

3шт.

8

CLC102697101

NEEDLE BEARING

2шт.

9

NSS

NOT SOLD SEPARAT

Gear, Helical, 58T, Incl in 1, 3

1шт.

10

NSS

NOT SOLD SEPARAT

Gear, Helical, 34T, Incl in 1, 3

1шт.

11

CLC102765101

REPAIR KIT

Neutral Switch, Incl 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, 25/64" ID x 31/64" OD 1-5/64" L, Incl in 1, 11

1шт.

13

NSS

NOT SOLD SEPARAT

Guide, Detent Bullet

1шт.

14

CLC102698601

DETENT

Bullet Detent

1шт.

15

NSS

NOT SOLD SEPARAT

Indicator Switch, Pollak

1шт.

16

CLC103721801

REPAIR KIT

Input Shaft, Incl 4, 7, 17 - 21

1шт.

17

CLC102697001

BALL BEARING

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, Helical, 90T, Incl in 1, 16

1шт.

19

NSS

NOT SOLD SEPARAT

Input Shaft, Incl in 1, 16

1шт.

20

NSS

NOT SOLD SEPARAT

Gear, Helical, 31T, Incl in 1, 16

1шт.

21

CLC102699701

RING

Retaining, E - Ring

1шт.

22

CLC102697501

MOVING CLUTCH DOG

Engagement

1шт.

Выбрано товаров: 22
