Запчасти Case IH SCOUT XL (21.100.02[02]) - TRANSMISSION (BEFORE SEPT 14 2011) (21) - TRANSMISSION

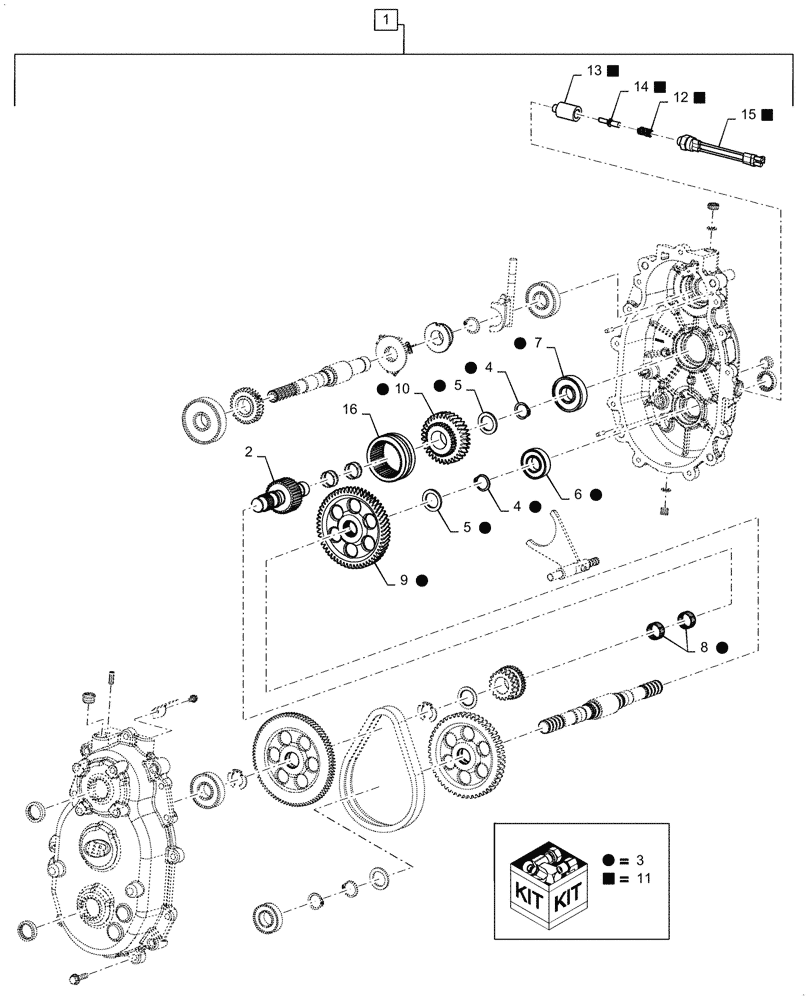

Схема запчастей Case IH SCOUT XL - (21.100.02[02]) - TRANSMISSION (BEFORE SEPT 14 2011) (21) - TRANSMISSION
11
11
3
4
3
5
5
11
11
9
3
8
3
11
3
6
1
4
3
3
3
7
12
10
13
14
3
15
16
3
3
2
11

Артикул

Название

Примечание

Количество

1

CLC102943201

TRANSMISSION

Assy, Incl 2 - 16

1шт.

2

CLC102698701

SHAFT

Intermediate

1шт.

3

CLC102764901

REPAIR KIT

Forward Gear, Incl 4 - 10

1шт.

4

CLC102696201

RING

2шт.

5

CLC102696501

THRUST WASHER

2шт.

6

CLC102696801

BALL BEARING

1шт.

7

CLC102696901

BALL BEARING

1шт.

8

CLC102697101

NEEDLE BEARING

2шт.

9

NSS

NOT SOLD SEPARAT

Gear, Helical, 58T, Incl in 1, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Gear, Helical, 34T, Incl in 1, 10

1шт.

11

CLC102765101

REPAIR KIT

Neutral Switch, Incl 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, 11/32" ID x 31/64" OD x 1-5/64" L, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Guide, Detent Bullet, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Bullet, Detent, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Switch, Indicator, Pollak, Incl in 1

1шт.

16

CLC102697501

MOVING CLUTCH DOG

Engagement

1шт.

Выбрано товаров: 16
